Product Details

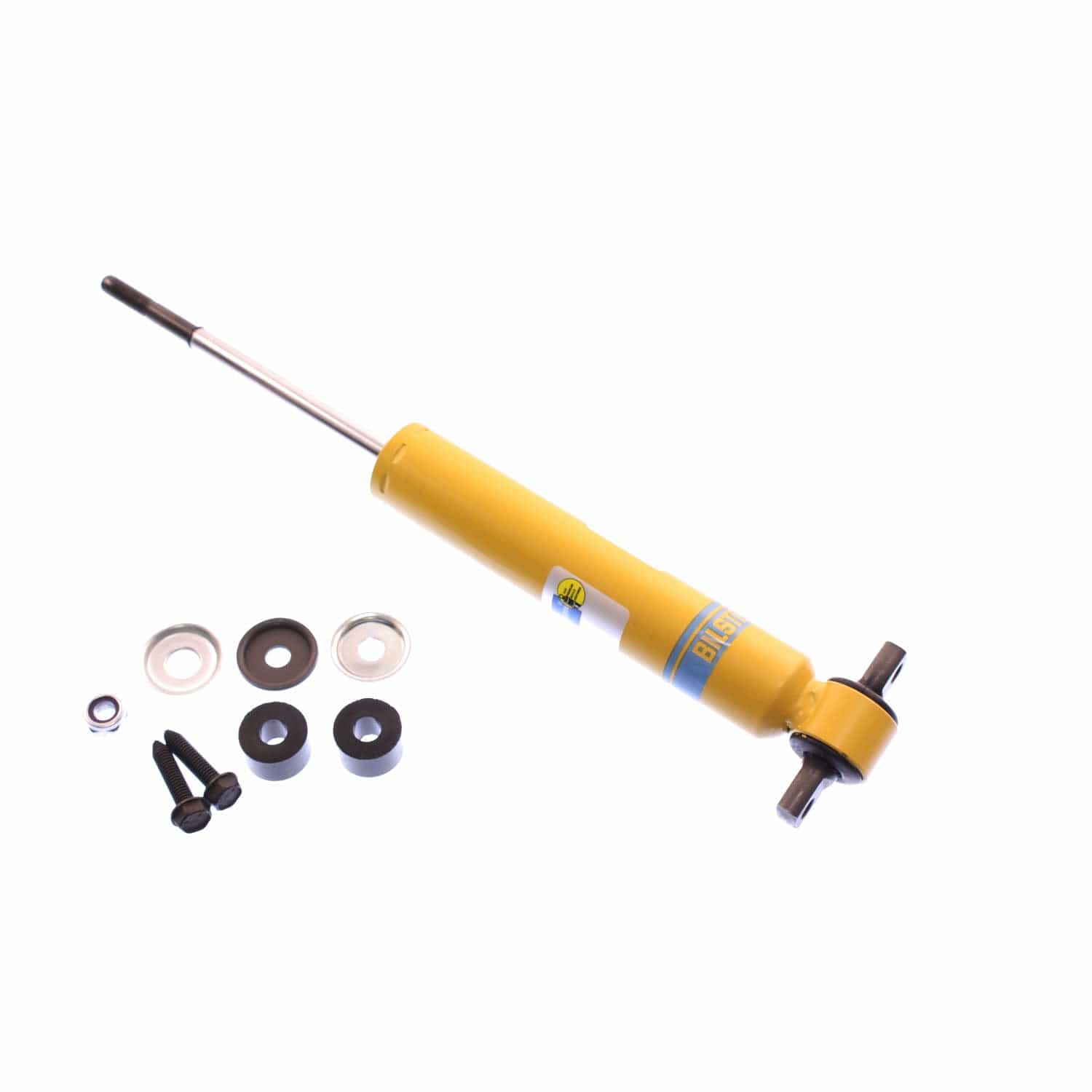

Bilstein shocks for the 1975-1980 Pontiac Grand Am, engineered and built in Germany to the standard that made the name.
The monotube design is what sets Bilstein apart. A single high-pressure gas chamber keeps the oil from aerating, so the damping stays consistent on a rough road instead of fading as the unit heats up.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | F4-BE3-E249-M0 |
| Part Name | Shock Absorber |
| Vehicle | 1975-1980 Pontiac Grand Am |
| Drivetrain | RWD |
| UPC | 651860589398 |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 36 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 8.73 in. (221.8 mm) |
| Compression @ 0.26m/s | 975 |
| Damping Adjustable | No |
| Extended Length | 13.46 in. (342.0 mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Bar Pin |
| Piston Type | Linear |
| Rebound @ 0.26m/s | 1595 |
| Segment | Motorsports |
| Series | AK Series |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Valving Identifier | 358/219 |
| Quantity | Sold Individually |
| Notes | Without Air Suspension |
Vehicle Fitment
- 1975 Pontiac Grand Am
- 1976 Pontiac Grand Am
- 1977 Pontiac Grand Am
- 1978 Pontiac Grand Am
- 1979 Pontiac Grand Am
- 1980 Pontiac Grand Am
