Product Details

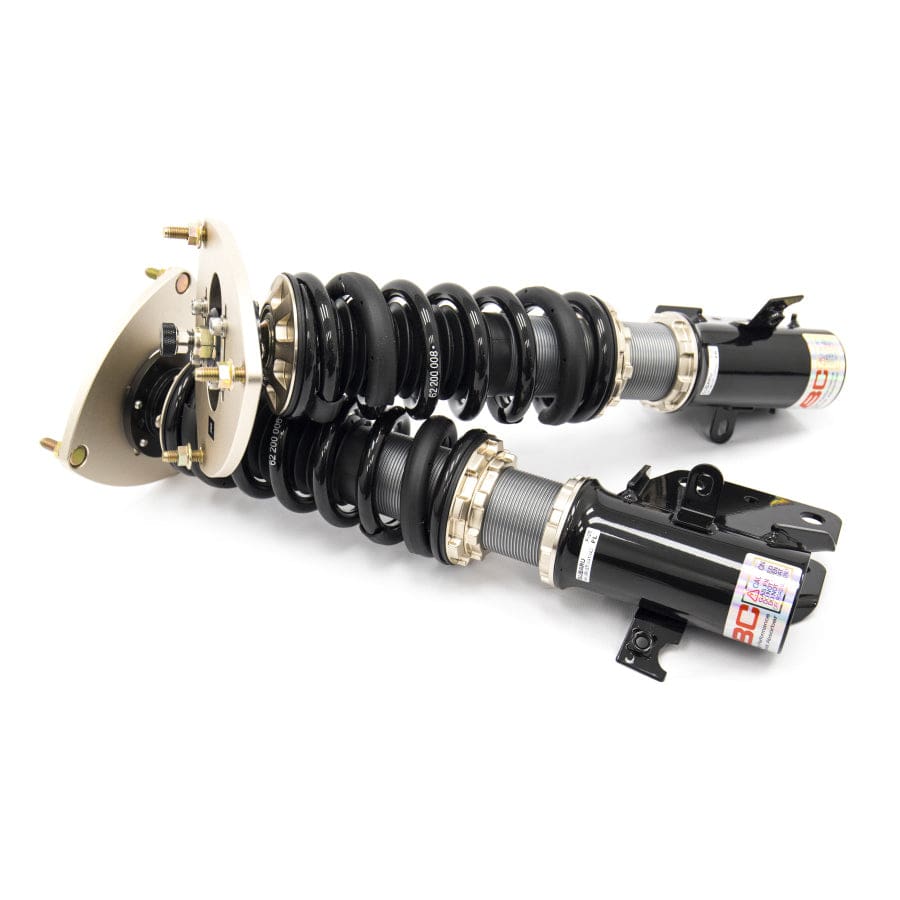

BC Racing DS Series Coilovers for the 2018+ Aston Martin V8 Vantage (AM6) blend street-tuned ride quality with track-ready adjustability, giving you more body control than any OEM damper without the harshness of a pure race kit. Every kit is extensively tested on the AM6 chassis and refined until it balances ride quality with performance, the reason V8 Vantage coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.
DS Series kits pair a mono-tube damper with BC's proprietary digressive piston design, increased low-speed damping for flat corner entry, compliant high-speed response over expansion joints and potholes. The finished shock body is silver, visually distinct from the BR Series, and ride height is adjustable independent of spring preload. The off-the-shelf setup from BC Racing is deliberately balanced, spring rates and valving chosen so the kit feels comfortable day-to-day without giving up performance when you push it. Drivers who want a different recipe can spec Swift Springs, custom spring rates, or fully custom valving at checkout; BC will tune the dampers to match, which is a depth of customization most brands only offer on their top-tier kits.
Since 2004, BC Racing has grown into one of the most trusted names in aftermarket coilovers, not by racing to the bottom on price, but by pairing that price with real build quality, deep customization options, and a damper design any suspension shop can rebuild instead of replacing. These V8 Vantage coilovers arrive tuned for the AM6 chassis and ready to bolt in, no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts, no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features
- 30-level simultaneous compression/rebound damping adjuster
- Mono-tube damper with BC's proprietary digressive piston
- Silver satin-chrome finished shock body (visually distinct from the BR Series)
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis, camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Swift Spring and custom spring rate upgrades available at checkout
- Custom damper valving paired with custom spring rates on request
- Fully rebuildable, replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number | YE-03-DS |
| Part Name | DS Series Coilovers |
| Vehicle | 2018+ Aston Martin V8 Vantage |
| Drivetrain | RWD |
| Chassis Code | AM6 |
| Damping Adjustment | 1-Way (30 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 9 kg/mm |
| Spring Rate - Rear | 8 kg/mm |
| Spring Size - Front | 62-250-9K |
| Spring Size - Rear | 62-240-8K |
| Swift Springs - Front | 62-254-X |
| Swift Springs - Rear | 62-228-X |
| Camber Plates - Front | Not Applicable |
| Camber Plates - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
Vehicle Fitment
- 2018 Aston Martin V8 Vantage RWD (AM6)
- 2019 Aston Martin V8 Vantage RWD (AM6)
- 2020 Aston Martin V8 Vantage RWD (AM6)
- 2021 Aston Martin V8 Vantage RWD (AM6)
- 2022 Aston Martin V8 Vantage RWD (AM6)
- 2023 Aston Martin V8 Vantage RWD (AM6)
- 2024 Aston Martin V8 Vantage RWD (AM6)
- 2025 Aston Martin V8 Vantage RWD (AM6)
- 2026 Aston Martin V8 Vantage RWD (AM6)
