Product Details

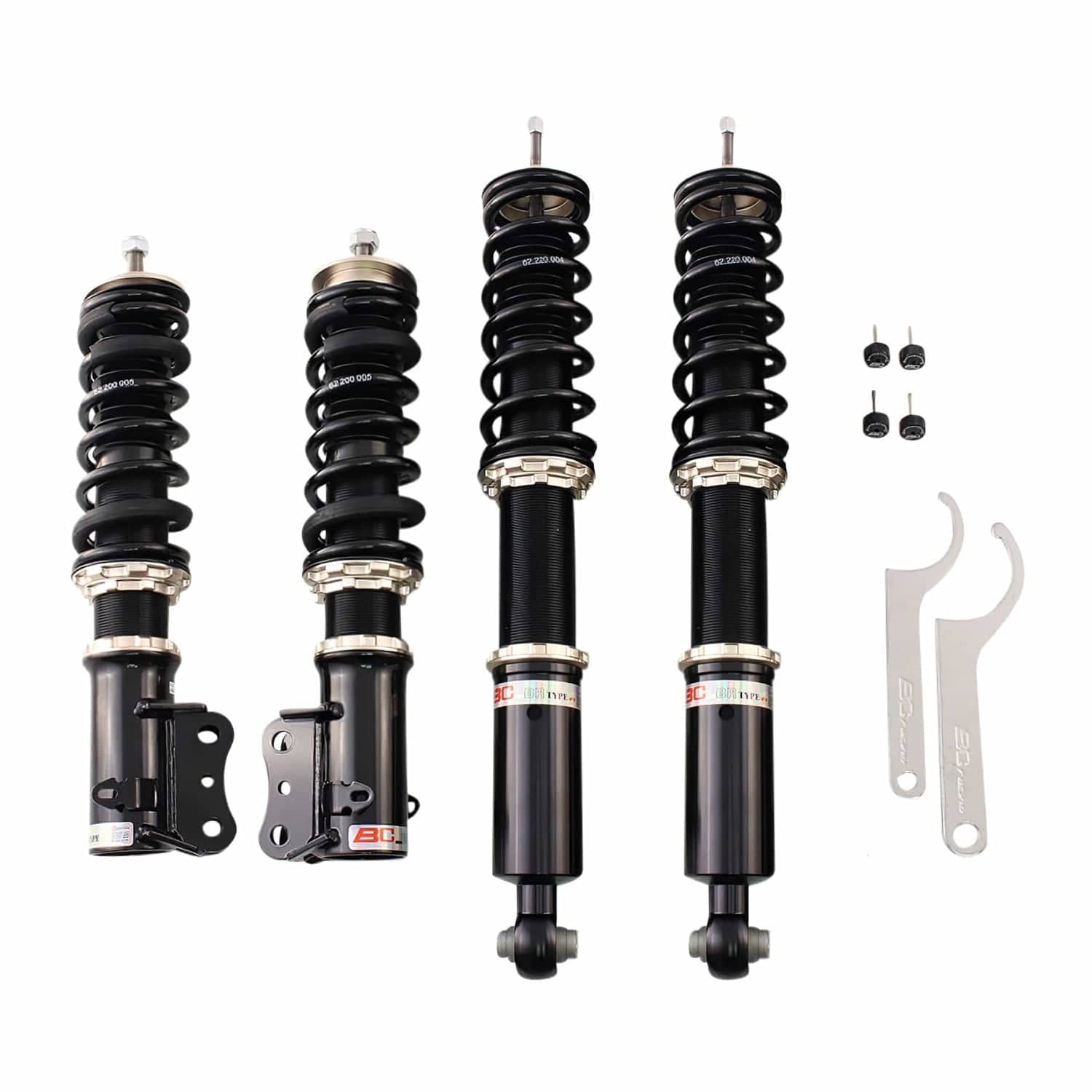

BC Racing BR Series Coilovers for the 2012-2019 Volkswagen Beetle (A5/PQ35) are BC Racing's entry-level coilover and the most popular kit in their entire lineup — they offer the most accessible entry into adjustable coilover suspension without sacrificing performance, comfort, build quality, or handling. Every kit is extensively tested on the Beetle chassis and refined until it balances ride quality with performance — the reason Beetle coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.
Every BR Series kit is built around a mono-tube damper with simultaneous compression and rebound adjustment at every corner — a wide damping range without the complexity of a race-only setup. Ride height is fully adjustable independent of spring preload, so you set the stance and the ride separately. The off-the-shelf setup from BC Racing is deliberately balanced — spring rates and valving chosen so the kit feels comfortable day-to-day without giving up performance when you push it. Drivers who want a different recipe can spec Swift Springs, custom spring rates, or fully custom valving at checkout; BC will tune the dampers to match, which is a depth of customization most brands only offer on their top-tier kits.
BC Racing has been manufacturing adjustable coilovers since 2004 and is one of the most popular coilover brands in the automotive tuning industry for a reason: competitive pricing, deep customization, proven reliability, and a fully rebuildable damper design that lasts years instead of seasons. These Beetle coilovers arrive tuned for the Beetle chassis and ready to bolt in — no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts — no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features
- 30-level simultaneous compression/rebound damping adjuster
- Mono-tube damper with linear piston and hardened chrome shaft
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis — camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Swift Spring and custom spring rate upgrades available at checkout
- Custom damper valving paired with custom spring rates on request
- Fully rebuildable — replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number | H-35-BR |
| Part Name | BR Series Coilovers |
| Vehicle | 2012-2019 Volkswagen Beetle |
| Drivetrain | AWD |
| Chassis Code | A5/PQ35 |
| Damping Adjustment | 1-Way (30 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 6 kg/mm |
| Spring Rate - Rear | 5 kg/mm |
| Spring Size - Front | 52-180-6K |
| Spring Size - Rear | 62-180-5K |
| Swift Springs - Front | 62-178-X |
| Swift Springs - Rear | 4K MIN |
| Camber Plates - Front | Included |
| Camber Plates - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Notes |
|
Vehicle Fitment
- 2012 Volkswagen Beetle AWD (A5/PQ35)
- 2013 Volkswagen Beetle AWD (A5/PQ35)
- 2014 Volkswagen Beetle AWD (A5/PQ35)
- 2015 Volkswagen Beetle AWD (A5/PQ35)
- 2016 Volkswagen Beetle AWD (A5/PQ35)
- 2017 Volkswagen Beetle AWD (A5/PQ35)
- 2018 Volkswagen Beetle AWD (A5/PQ35)
- 2019 Volkswagen Beetle AWD (A5/PQ35)
