Product Details
BC Racing BR Series Coilovers for the 2003-2009 Mercedes-Benz E Class 4DR (W211) are BC Racing's entry-level coilover and the most popular kit in their entire lineup — they offer the most accessible entry into adjustable coilover suspension without sacrificing performance, comfort, build quality, or handling. Every kit is extensively tested on the W211 chassis and refined until it balances ride quality with performance — the reason E Class 4DR coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.

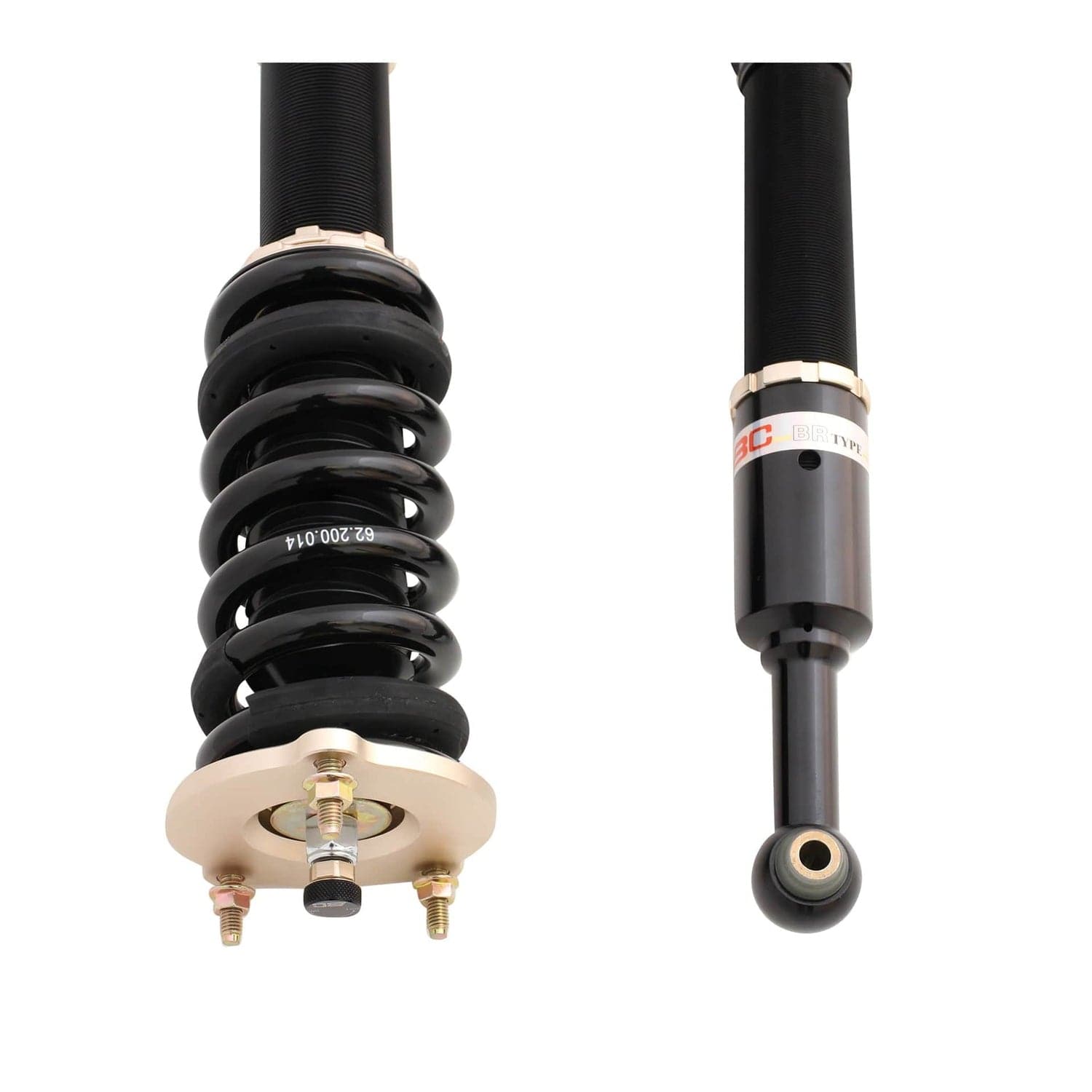

Every BR Series kit is built around a mono-tube damper with simultaneous compression and rebound adjustment at every corner — a wide damping range without the complexity of a race-only setup. Ride height is fully adjustable independent of spring preload, so you set the stance and the ride separately. Where BC Racing separates itself is tuning philosophy: every off-the-shelf spring rate and damper setup is chosen to stay comfortable on daily roads while still delivering real performance at the track. If you want something different, Swift Springs, custom rates, and custom valving are all options at checkout — BC will match the valving of the dampers to whatever springs you pick, something most brands don't offer outside their flagship race lineup.
Since 2004, BC Racing has grown into one of the most trusted names in aftermarket coilovers — not by racing to the bottom on price, but by pairing that price with real build quality, deep customization options, and a damper design any suspension shop can rebuild instead of replacing. These E Class 4DR coilovers arrive tuned for the W211 chassis and ready to bolt in — no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts — no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features
- 30-level simultaneous compression/rebound damping adjuster
- Mono-tube damper with linear piston and hardened chrome shaft
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis — camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Swift Spring and custom spring rate upgrades available at checkout
- Custom damper valving paired with custom spring rates on request
- Fully rebuildable — replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number | J-06-BR |
| Part Name | BR Series Coilovers |
| Vehicle | 2003-2009 Mercedes-Benz E Class 4DR |
| Drivetrain | AWD |
| Chassis Code | W211 |
| Damping Adjustment | 1-Way (30 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 12 kg/mm |
| Spring Rate - Rear | 17 kg/mm |
| Spring Size - Front | 62-230-12K |
| Spring Size - Rear | 62-70-250-17K-V |
| Swift Springs - Front | 62-203-X |
| Camber Plates - Front | Not Applicable |
| Camber Plates - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Notes |
|
Vehicle Fitment
- 2003 Mercedes-Benz E Class 4DR AWD (W211)
- 2004 Mercedes-Benz E Class 4DR AWD (W211)
- 2005 Mercedes-Benz E Class 4DR AWD (W211)
- 2006 Mercedes-Benz E Class 4DR AWD (W211)
- 2007 Mercedes-Benz E Class 4DR AWD (W211)
- 2008 Mercedes-Benz E Class 4DR AWD (W211)
- 2009 Mercedes-Benz E Class 4DR AWD (W211)
