Product Details

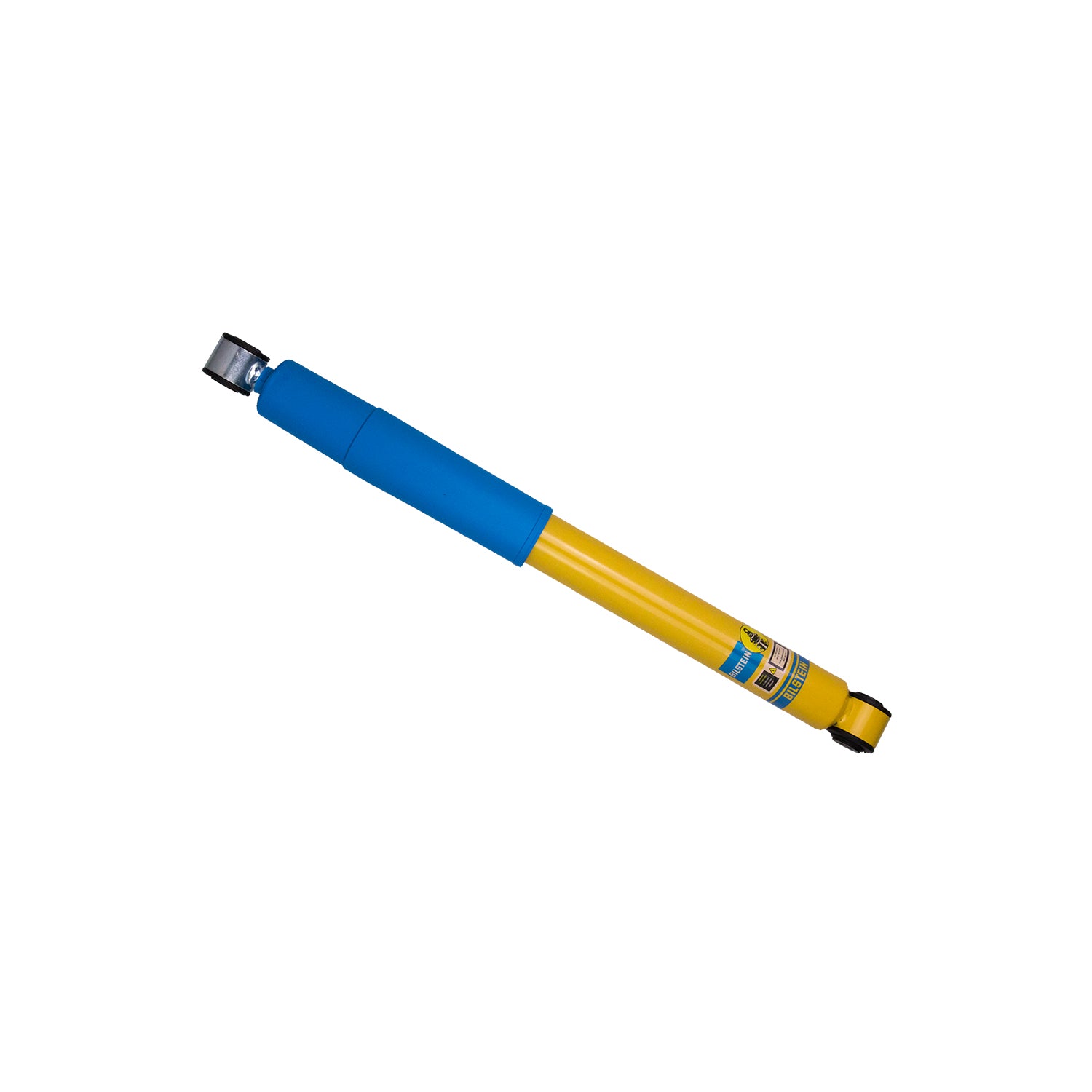

The Bilstein B6 shocks give the 2016-2024 Nissan TITAN XD (A61) the body control the factory dampers never had, at stock ride height. Less nose dive under brakes, less sway when loaded, less float on a long highway pull.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Specific tuning for stock height vehicles
- Uses OEM springs and mounting hardware
Specifications
| Part Number | 24-268127 |
| Part Name | Shock Absorber |
| UPC | 651860803777 |
| Vehicle | 2016-2024 Nissan TITAN XD |
| Chassis Code | A61 |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Blue Straight |
| Collapsed Length | 16.2 in. (411.5mm) |
| Extended Length | 24.79 in. (629.7mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | No |
| Segment | Light Truck |
| Series | B6 4600 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Upper Mount Type | Eye 14mm |
Vehicle Fitment
- 2016 Nissan TITAN XD 4WD (A61)
- 2017 Nissan TITAN XD 4WD (A61)
- 2018 Nissan TITAN XD 4WD (A61)
- 2019 Nissan TITAN XD 4WD (A61)
- 2020 Nissan TITAN XD 4WD (A61)
- 2021 Nissan TITAN XD 4WD (A61)
- 2022 Nissan TITAN XD 4WD (A61)
- 2023 Nissan TITAN XD 4WD (A61)
- 2024 Nissan TITAN XD 4WD (A61)
