Product Details

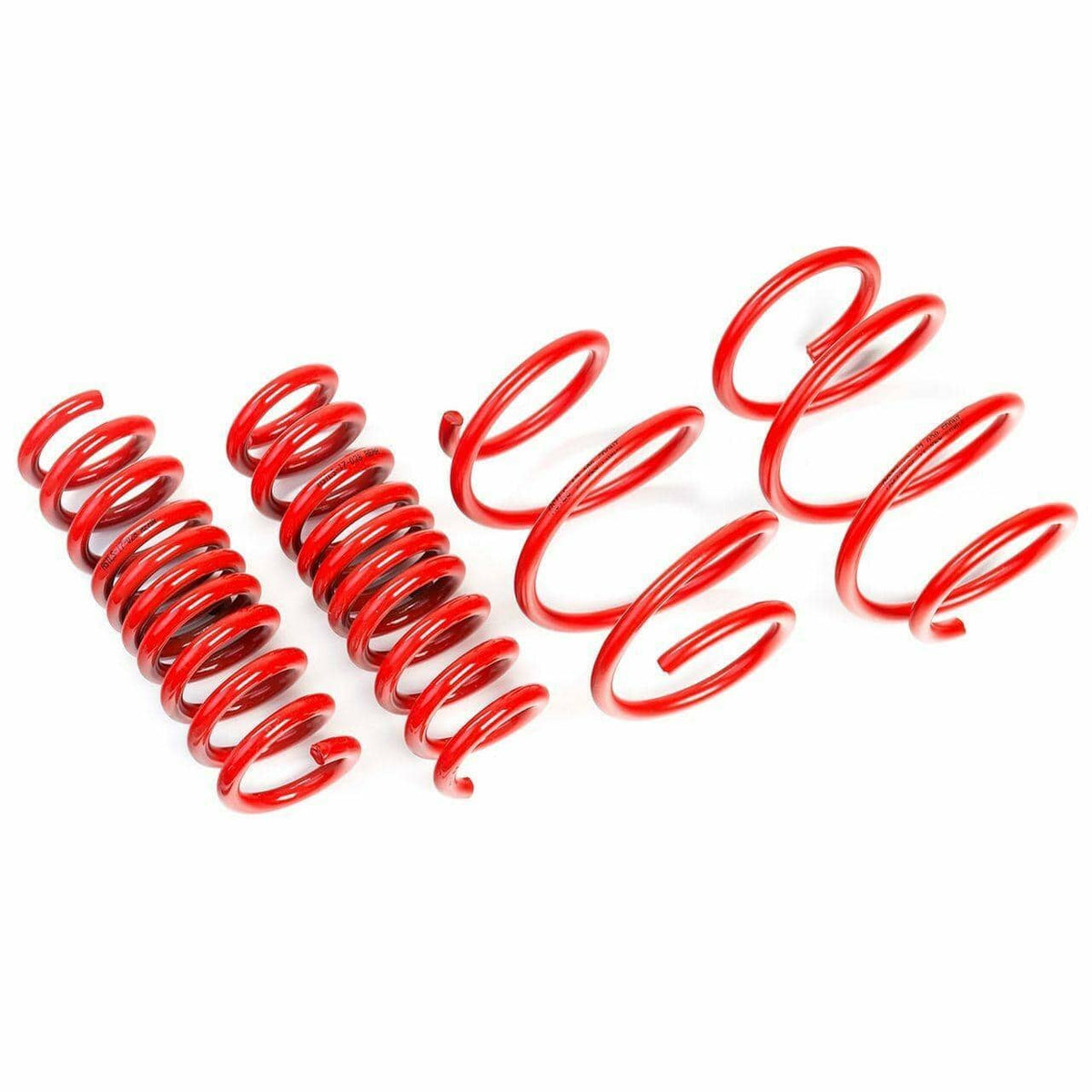

AST Lowering Springs for the 2014-2020 Ford Mondeo Station Wagon 1.0/1.5/1.5TDCi/1.6TDCi FWD (CD391) are manufactured from a premium high tensile chromium-silicone wire which is handpicked by AST engineers for its quality and metal consistency.
Each spring is cold wound and then heat treated to increase hardness and reduce internal stresses present after winding. Each spring is then individually shot peened, phosphate treated and then powder coated to outlast even the life of the vehicle.
Standard Features
- Progressive rates on most vehicles.
- EDC Compatible (if applicable to vehicle)
- Each spring is blocked and computer tested prior to shipping, which reduces any settling once installed on the vehicle.
- Lifetime warranty on breaking.
- Most of our spring applications are TUV Certified and certificates can be provided upon request.
Specifications
| Part Number | ASTLS-17-040 |
| Part Name | Lowering Springs |
| Vehicle | 2014-2020 Ford Mondeo Station Wagon 1.0/1.5/1.5TDCi/1.6TDCi FWD |
| Chassis Code | CD391 |
| Ride-Height Adjustable | No |
| Spring Type | Progressive |
| Approximate Drop - Front | 40mm |
| Approximate Drop - Rear | 40mm |
| TUV Certified | Yes |
| Quantity | Set of 4 |
| Notes | Not suitable for 4WD (four-wheel drive) cars. |
Vehicle Fitment
- 2014 Ford Mondeo Station Wagon 1.0/1.5/1.5TDCi/1.6TDCi FWD (CD391)
- 2015 Ford Mondeo Station Wagon 1.0/1.5/1.5TDCi/1.6TDCi FWD (CD391)
- 2016 Ford Mondeo Station Wagon 1.0/1.5/1.5TDCi/1.6TDCi FWD (CD391)
- 2017 Ford Mondeo Station Wagon 1.0/1.5/1.5TDCi/1.6TDCi FWD (CD391)
- 2018 Ford Mondeo Station Wagon 1.0/1.5/1.5TDCi/1.6TDCi FWD (CD391)
- 2019 Ford Mondeo Station Wagon 1.0/1.5/1.5TDCi/1.6TDCi FWD (CD391)
- 2020 Ford Mondeo Station Wagon 1.0/1.5/1.5TDCi/1.6TDCi FWD (CD391)
