Product Details

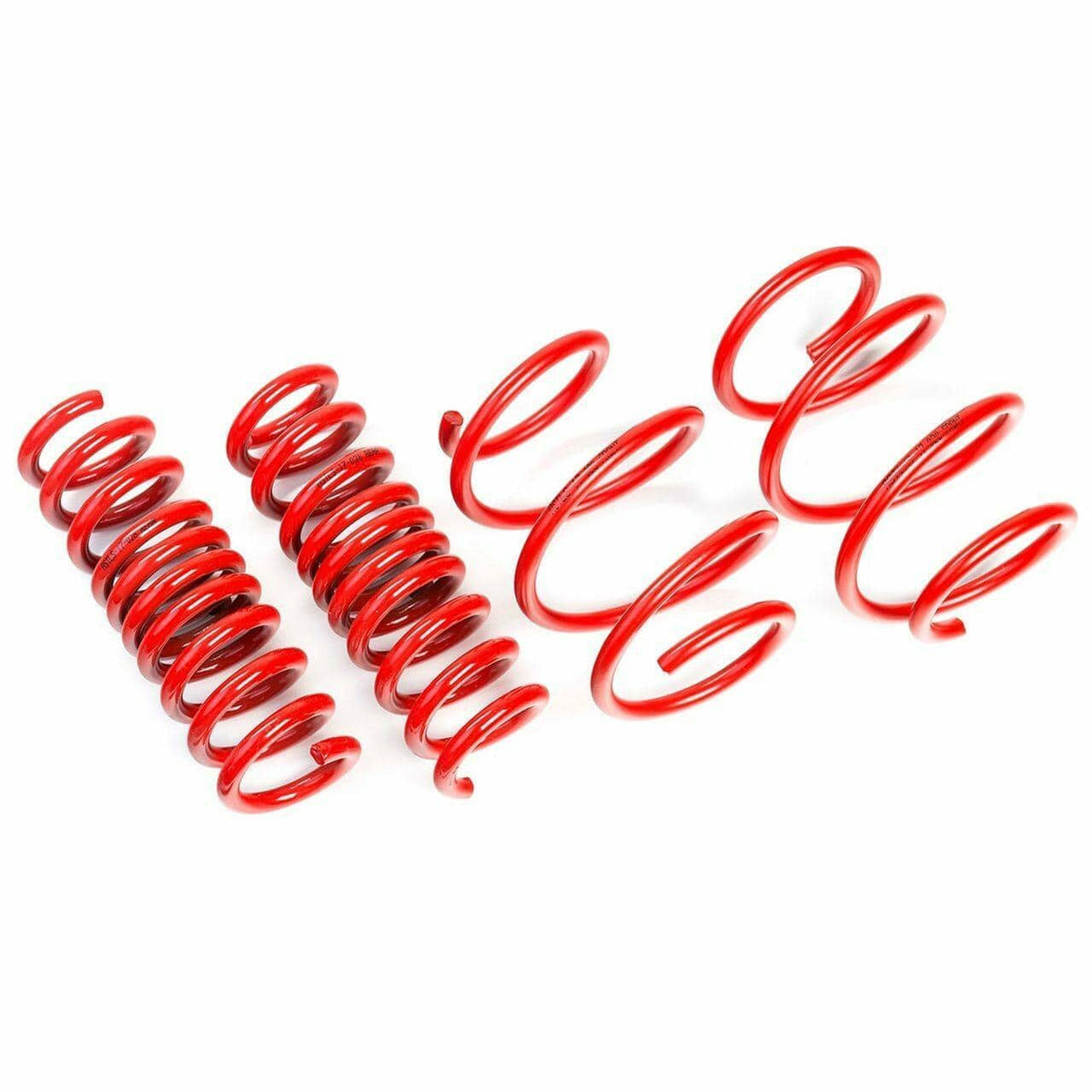

AST Lowering Springs for the 2002-2007 Toyota Corolla 2.0D4-D FWD (E12) are manufactured from a premium high tensile chromium-silicone wire which is handpicked by AST engineers for its quality and metal consistency.

Each spring is cold wound and then heat treated to increase hardness and reduce internal stresses present after winding. Each spring is then individually shot peened, phosphate treated and then powder coated to outlast even the life of the vehicle.

Standard Features

  • Progressive rates on most vehicles.
  • EDC Compatible (if applicable to vehicle)
  • Each spring is blocked and computer tested prior to shipping, which reduces any settling once installed on the vehicle.
  • Lifetime warranty on breaking.
  • Most of our spring applications are TUV Certified and certificates can be provided upon request.
Specifications
Part Number ASTLS-14-2297
Part Name Lowering Spring
Vehicle 2002-2007 Toyota Corolla 2.0D4-D FWD
Chassis Code E12
Ride-Height Adjustable No
Spring Type Progressive
Approximate Drop - Front 35mm
Approximate Drop - Rear 35mm
TUV Certified Yes
Quantity Set of 4
Model Note 3/4/5-Door/Wagon
Note 1 Bumpstop front: cut off 20 mm from bottomside and remove plastic ring.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002ToyotaCorollaFWD
2003ToyotaCorollaFWD
2004ToyotaCorollaFWD
2005ToyotaCorollaFWD
2006ToyotaCorollaFWD
2007ToyotaCorollaFWD
