Product Details
The Bilstein AS2 Series shock absorber is specified by dimension rather than by vehicle. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
Bilstein supplies suspension as original equipment to manufacturers worldwide and applies the same engineering here. Covered by a limited lifetime warranty.
Features
- 46mm lightweight extruded aluminum body for superior heat dissipation
- Fine thread body provides precise adjustments in coilover applications
- Single and double adjustable shaft options available
Specifications
| Part Number | 33-334073 |
| Part Name | Shock Absorber |
| UPC | 651860907291 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 14.9 in. (378.5mm) |
| Extended Length | 23.9 in. (607.1mm) |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Teflon Heim |
| Piston Diameter | 46mm |
| Piston Type | Digressive |
| Vehicle Placement | Rear Right |
| Segment | Motorsports |
| Series | AS2 Series |
| Shaft Diameter | 14mm |

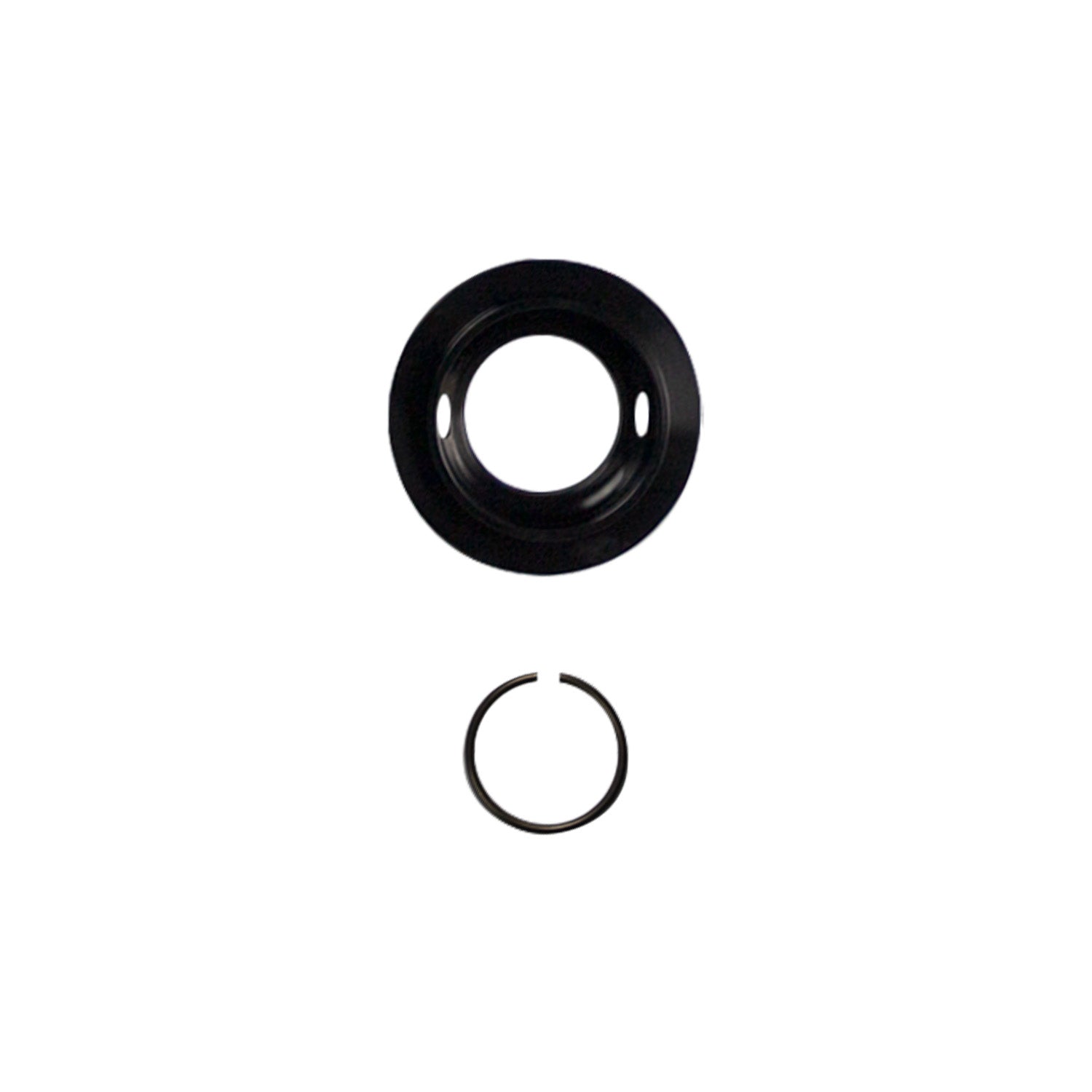

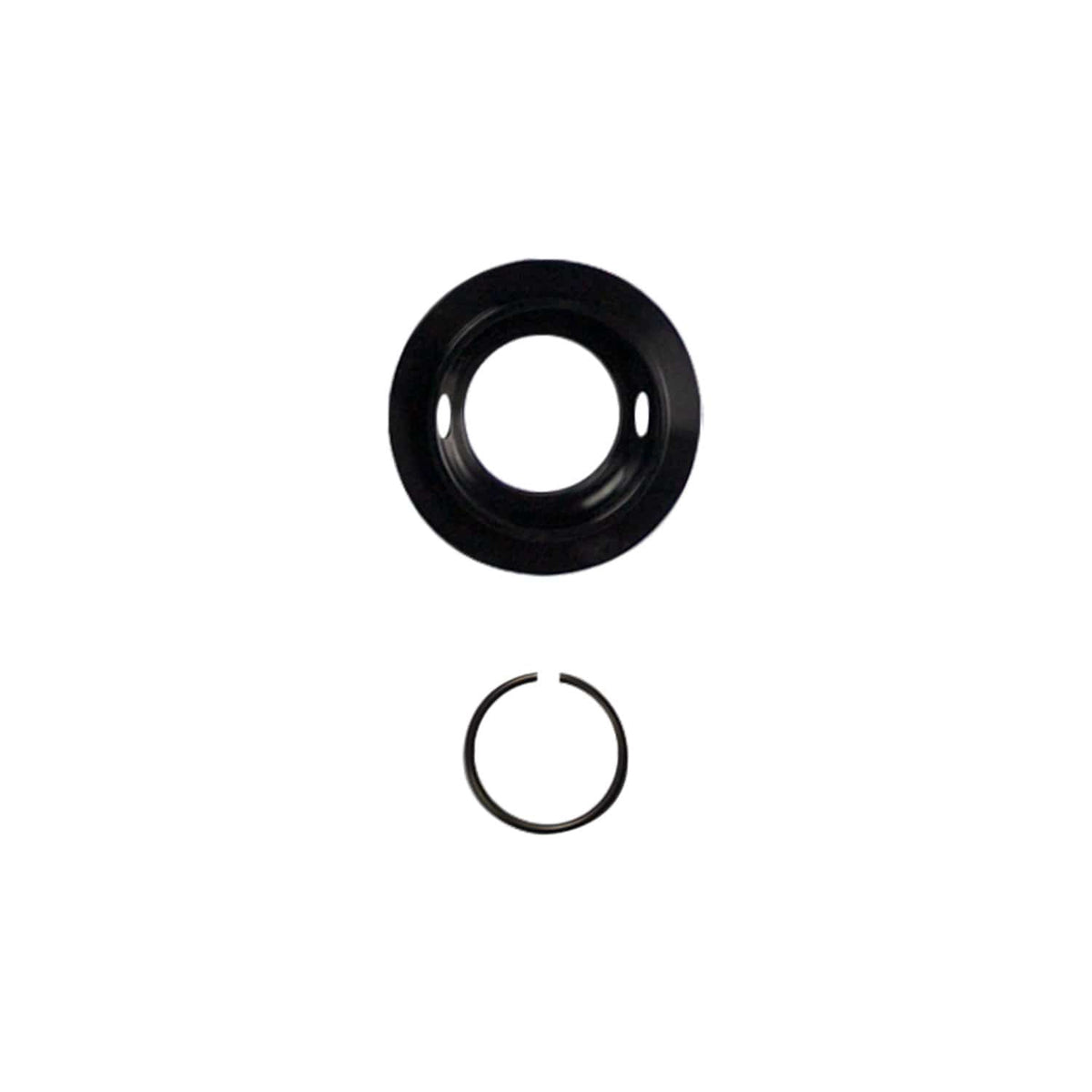

| Spring Seat Included | Yes |
| Stroke/Travel Length | 9 in. (228.6mm) |
| Upper Mount Type | 1/2 in. Teflon Heim |
