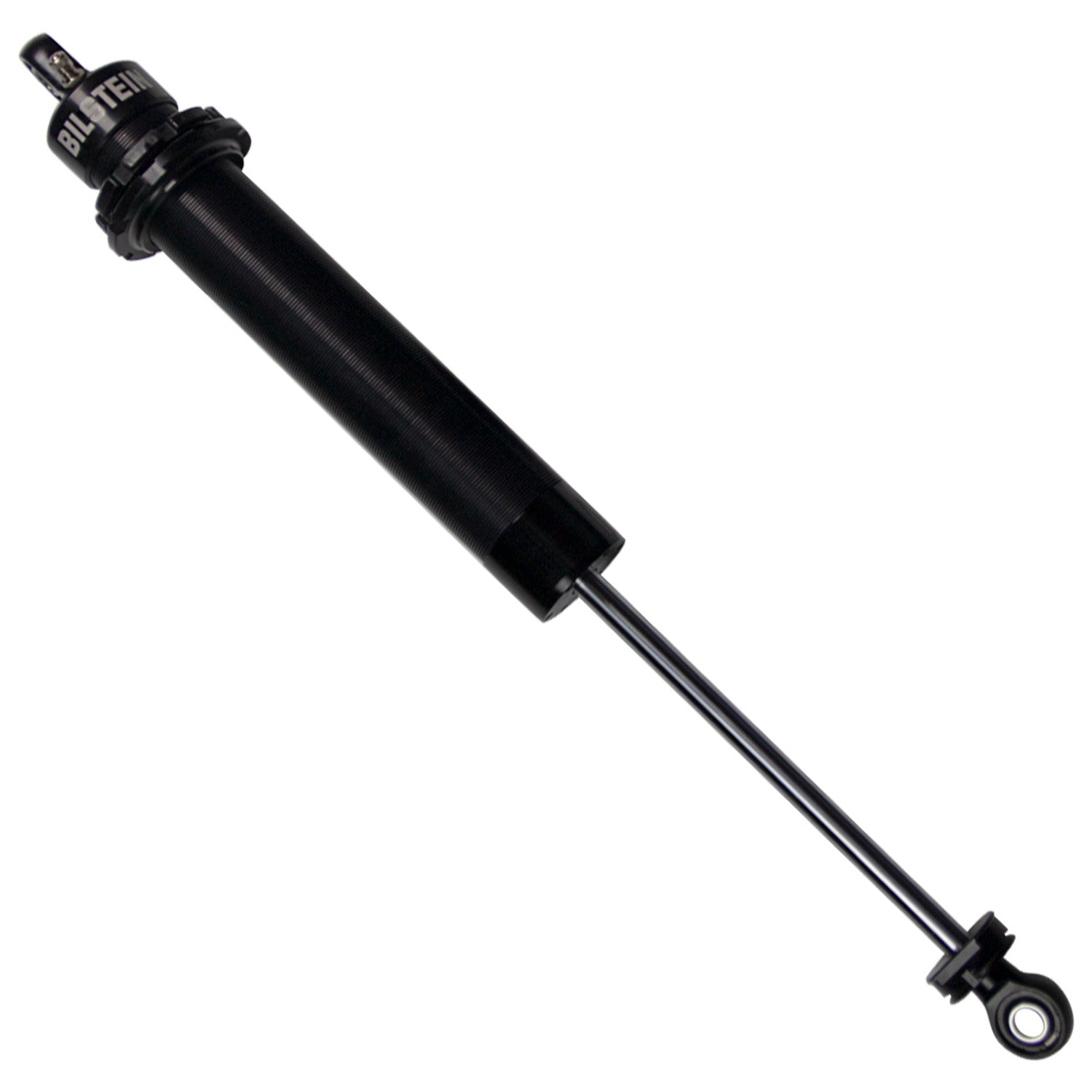

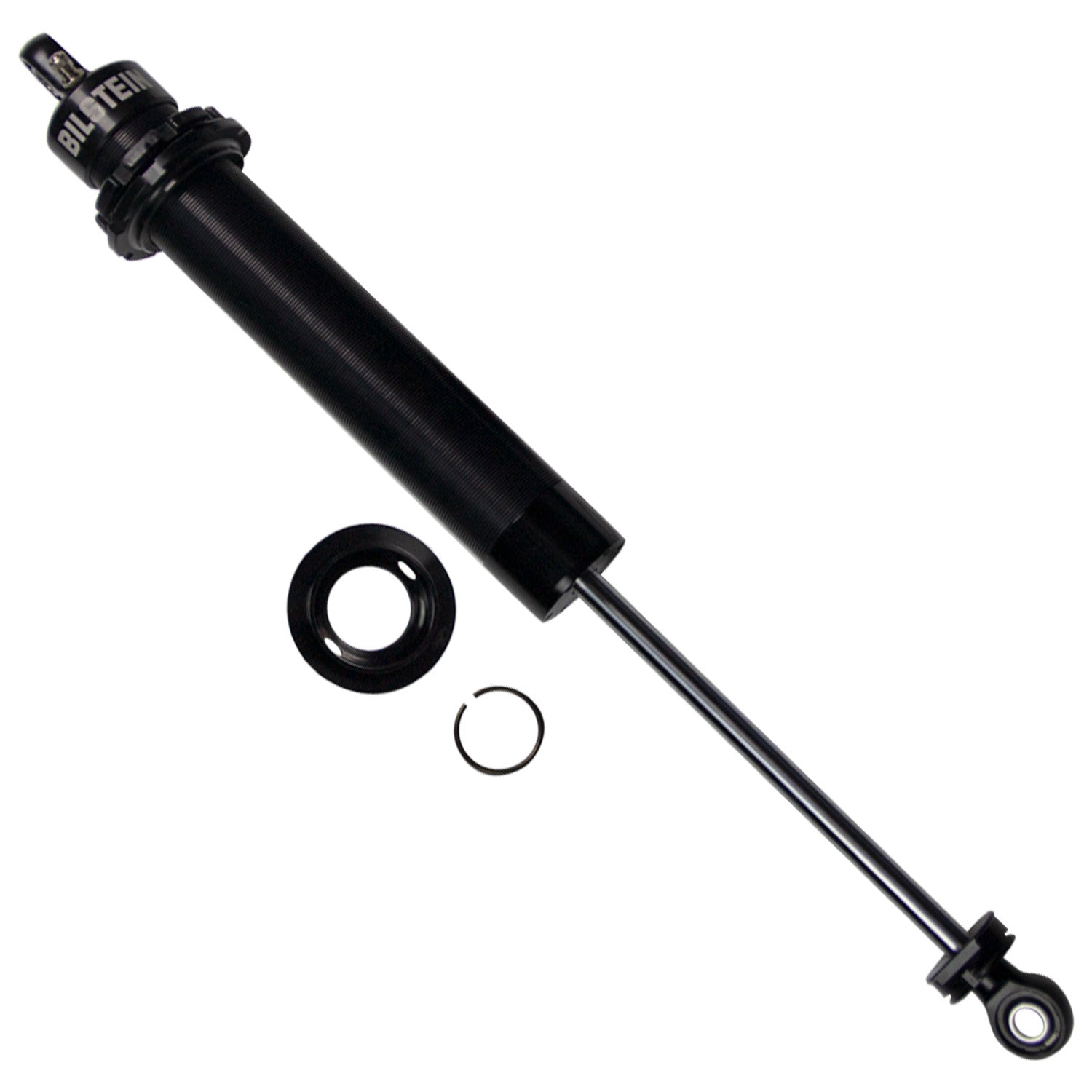

The Bilstein AS2 Series shock absorber is specified by dimension rather than by vehicle. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Features
- 46mm lightweight extruded aluminum body for superior heat dissipation
- Fine thread body provides precise adjustments in coilover applications
- Single and double adjustable shaft options available
Specifications
| Part Number | 33-334080 |
| Part Name | Shock Absorber |
| UPC | 651860907307 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 16.9 in. (429.3mm) |
| Extended Length | 25.85 in. (656.6mm) |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Teflon Heim |
| Piston Diameter | 46mm |
| Piston Type | Digressive/High Flow Linear |
| Vehicle Placement | Rear Left |
| Segment | Motorsports |
| Series | AS2 Series |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 8.95 in. (227.3mm) |
| Upper Mount Type | 1/2 in. Teflon Heim |
