Product Details

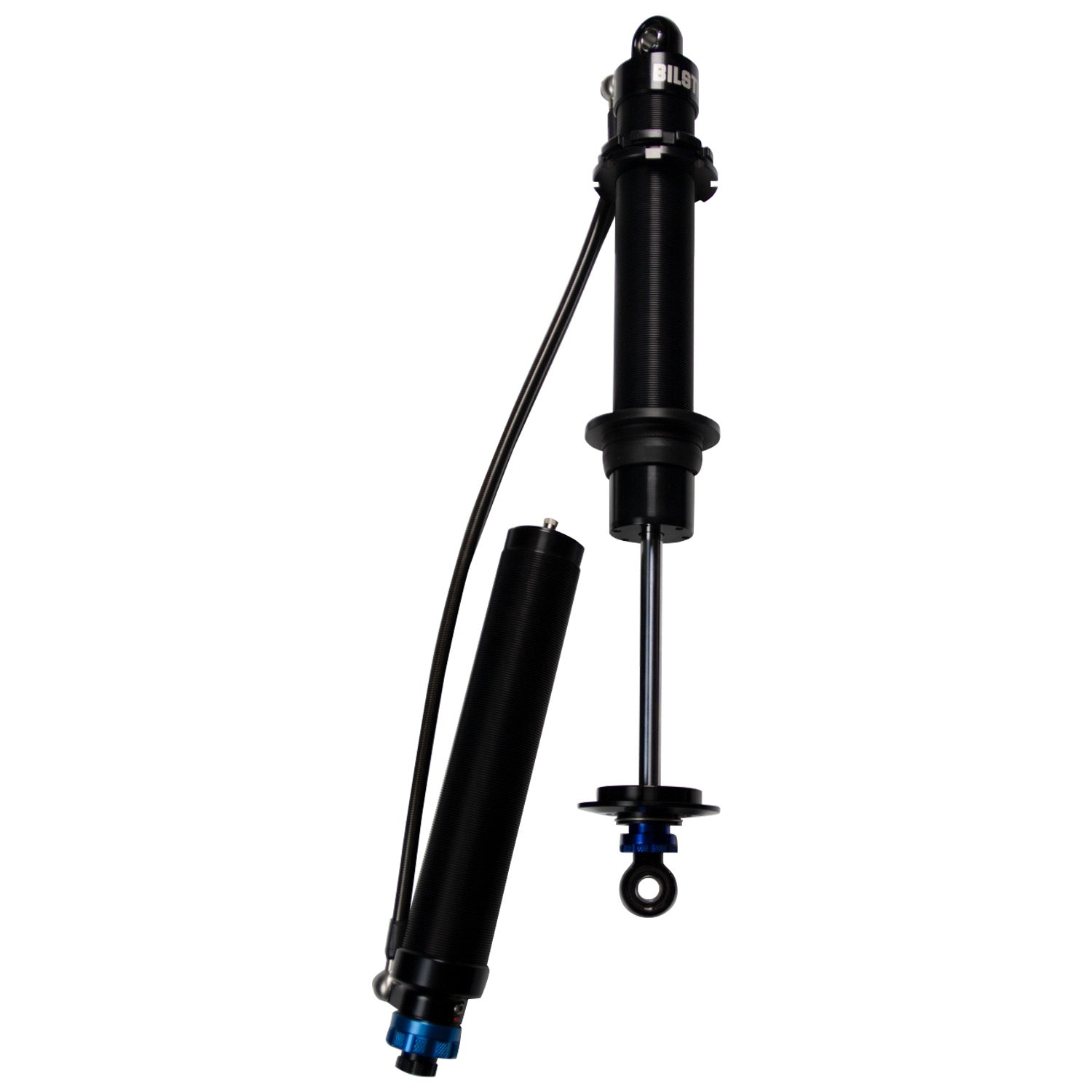

Bilstein AS2-R Series Suspension Shock Absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design. The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilstein's AS2 Series aluminum modular shock. The lightweight threaded body shock can be used with or without coilover hardware. Pistons, piston bands and Heims are sold separately to allow the greatest flexibility in upgrade combinations. The AS2-R Series Suspension Shock Absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.

Standard Features

  • Championship-winning tuning options
  • All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
  • Low friction rod guides for minimum rod drag
Specifications
Part Number 33-327747
Part Name Shock Absorber
UPC 651860895796
Adjustable Damping Triple Adjustable - Rebound and High and Low Speed Compression
Body Design Threaded Body Screw Top (Coilover)
Body Material Aluminum
Boot Included No
Collapsed Length 15.33 in.
Collapsed Length 389.4mm
Extended Length 23.18 in.
Extended Length 588.8mm
Finish Clear Anodized
Internal Design Monotube
Lower Mount Type 1/2 in. Heim
Piston Diameter 46mm
Piston Type 2 Port Linear
Vehicle Placement Rear Right
Segment Motorsports
Series AS2-R Series
Shaft Diameter 14mm
Spring Hardware E4-MSG-0096A00
Spring Hardware 2 B4-MKT-0001A00
Spring Seat Included Yes
Stroke/Travel Length 7.85 in.
Stroke/Travel Length 199.4mm
Upper Mount Type 1/2 in. Heim
