Product Details

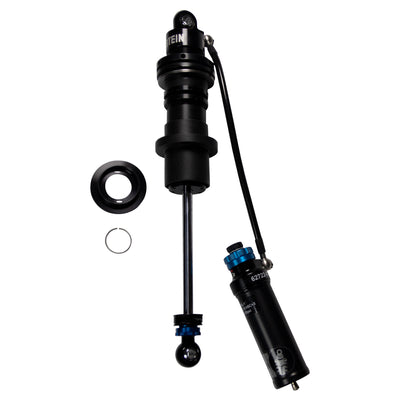

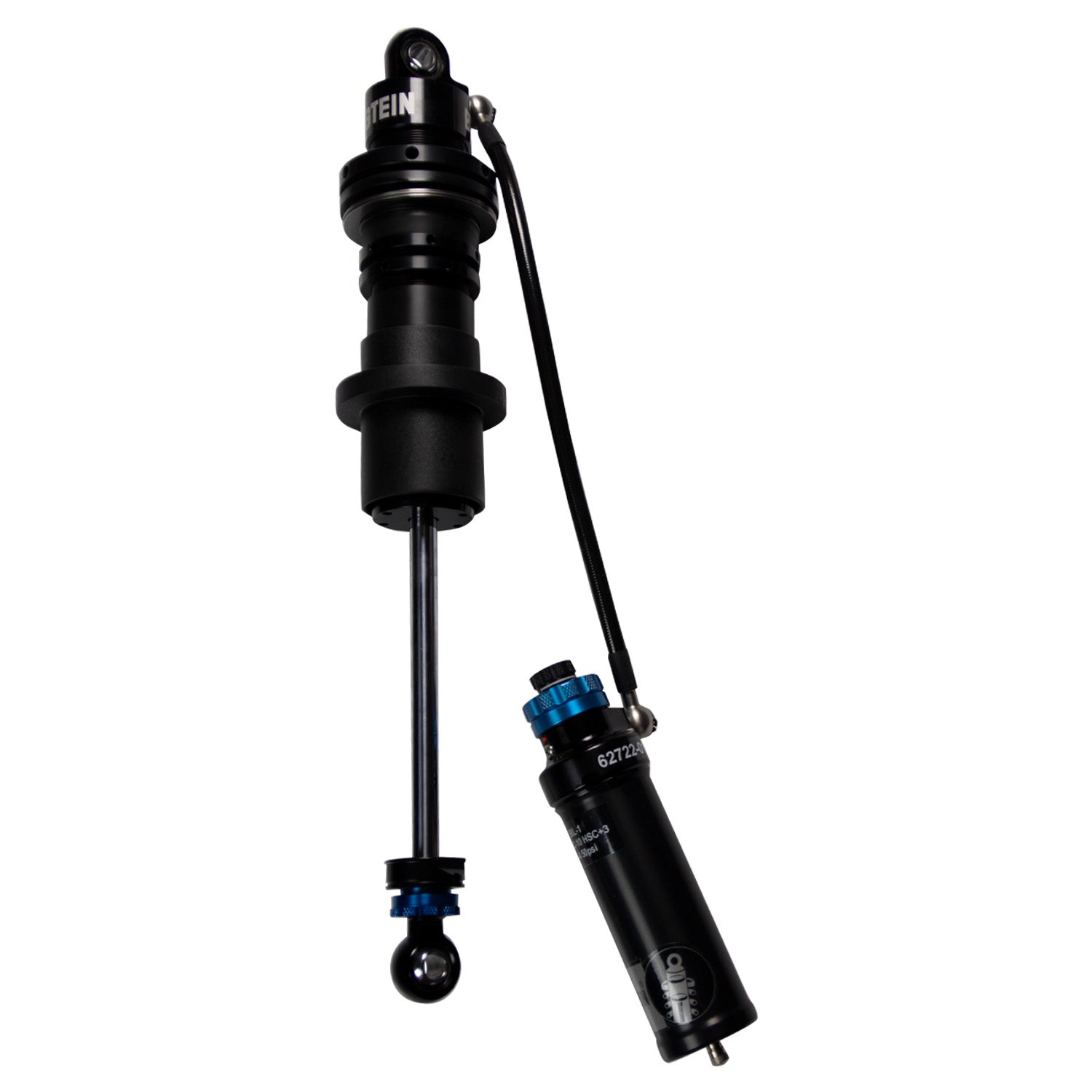

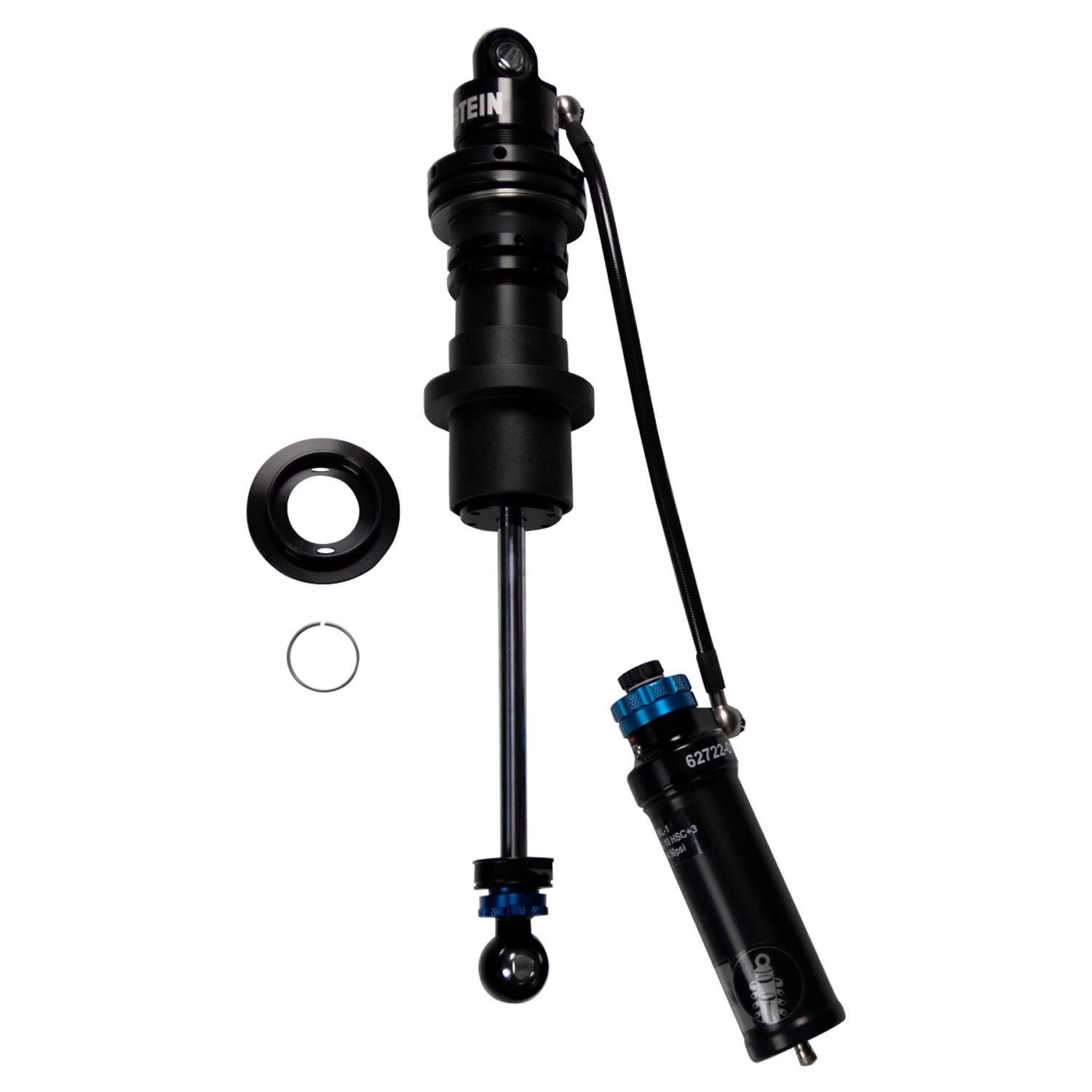

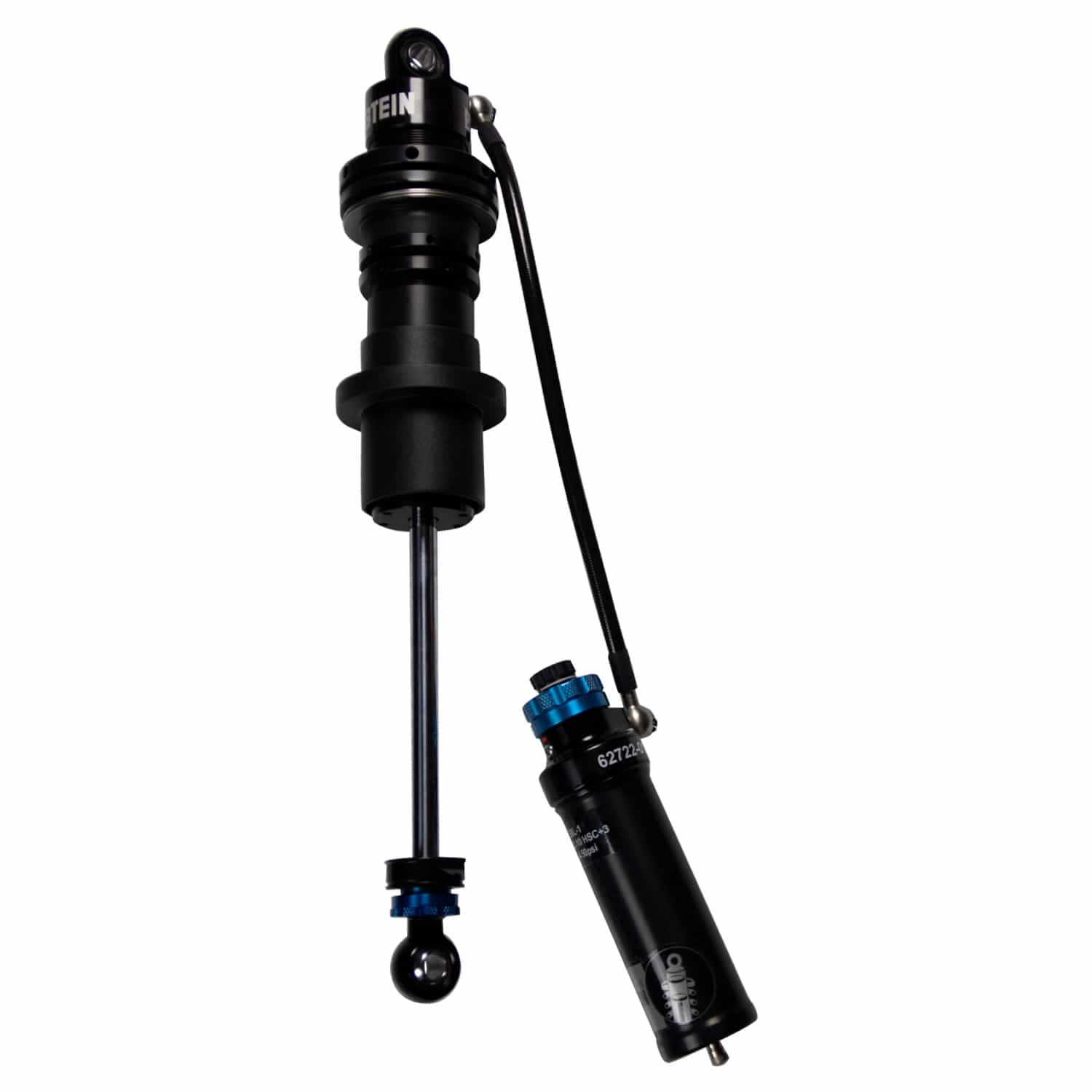

The Bilstein AS2-R Series shock absorber is specified by dimension rather than by vehicle. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Features
- Championship-winning tuning options
- All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
- Low friction rod guides for minimum rod drag
Specifications
| Part Number | 33-323466 |
| Part Name | Shock Absorber |
| UPC | 651860888934 |
| Adjustable Damping | Triple Adjustable - Rebound and High and Low Speed Compression |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 12.71 in. (323mm) |
| Extended Length | 19.29 in. (490mm) |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Diameter | 46mm |
| Piston Type | Digressive/Linear |
| Vehicle Placement | Front Right |
| Segment | Motorsports |
| Series | AS2-R Series |
| Shaft Diameter | 14mm |
| Spring Hardware | B4-MKT-0004A00 |
| Spring Hardware 2 | B4-MKT-0008A00 |
| Spring Hardware 3 | E4-MSG-0096A00 |
| Spring Hardware 4 | B4-FT4-Z060A00 |
| Spring Seat Included | Yes |
| Stroke/Travel Length | 6.58 in. (167.1mm) |
| Upper Mount Type | 1/2 in. Heim |
