Product Details

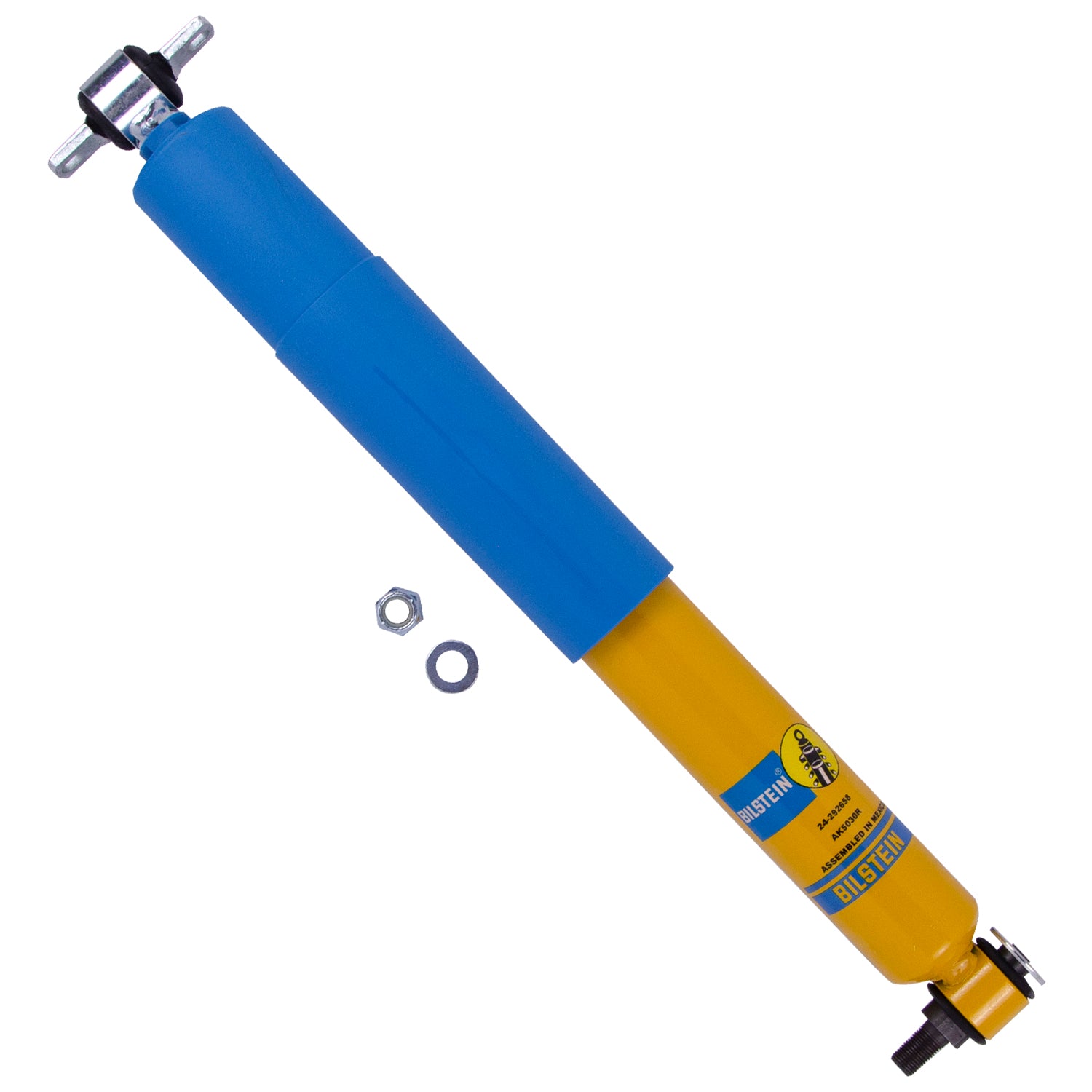

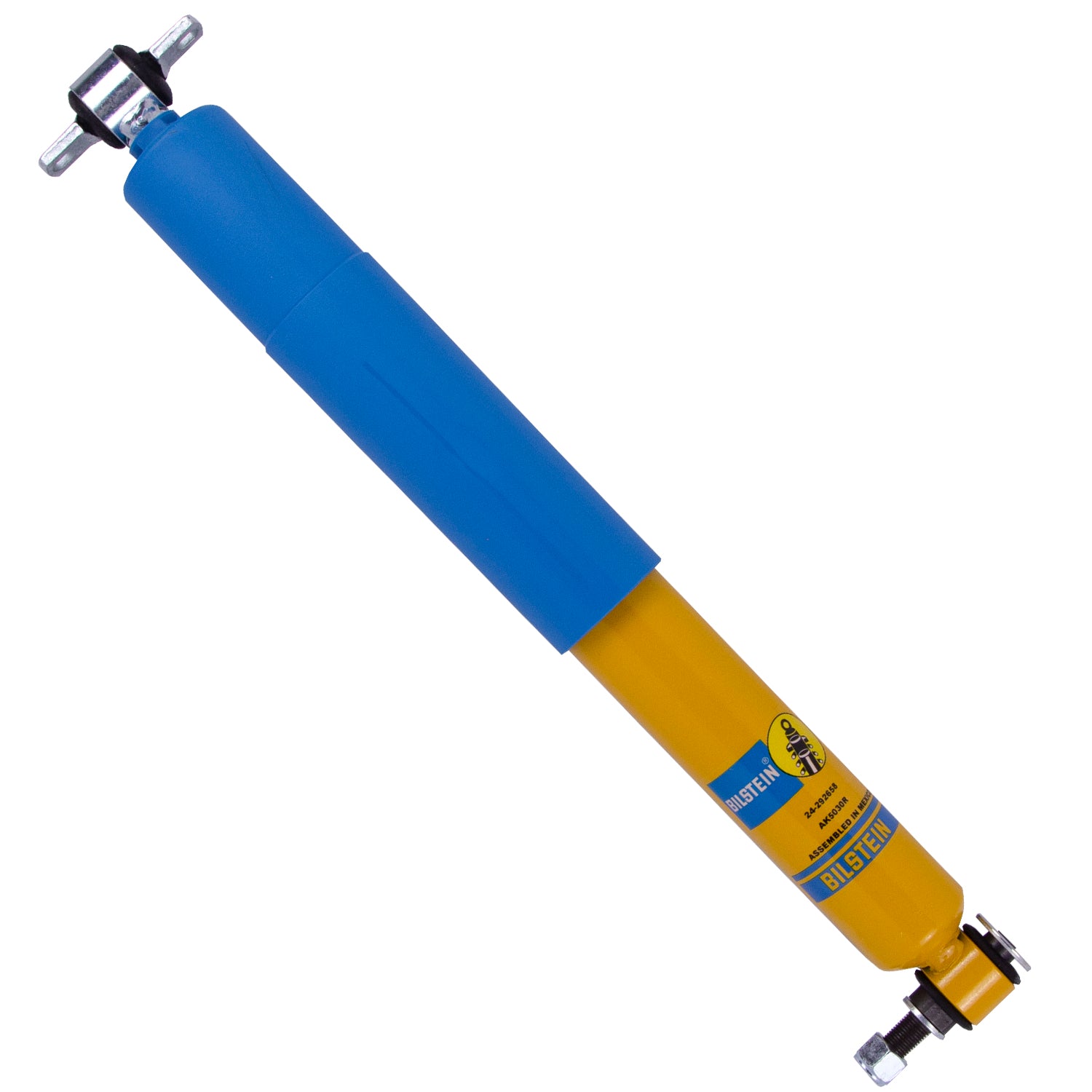

At 13.11 in. collapsed: The Bilstein AK Series shock absorber is a universal-fit part, chosen on collapsed and extended length rather than a year-make-model lookup. Fabricators, restorers, and race teams buy these to suit a custom setup.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | 24-292658 |
| Part Name | Shock Absorber |
| UPC | 651860831336 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Stock Mount Smooth Body |
| Body Material | Steel |
| Boot Included | Blue Straight |
| Collapsed Length | 13.11 in. (333mm) |
| Compression @ 0.52m/s | 805 |
| Extended Length | 20.28 in. (515mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Cantilever |
| Piston Diameter | 46mm |
| Piston Type | Digressive |
| Vehicle Placement | Rear |
| Rebound @ 0.52m/s | 2730 |
| Segment | Motorsports |
| Series | AK Series |
| Shaft Diameter | 11mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 7.17 in. (182.1mm) |
| Upper Mount Type | Bar Pin |
