Product Details

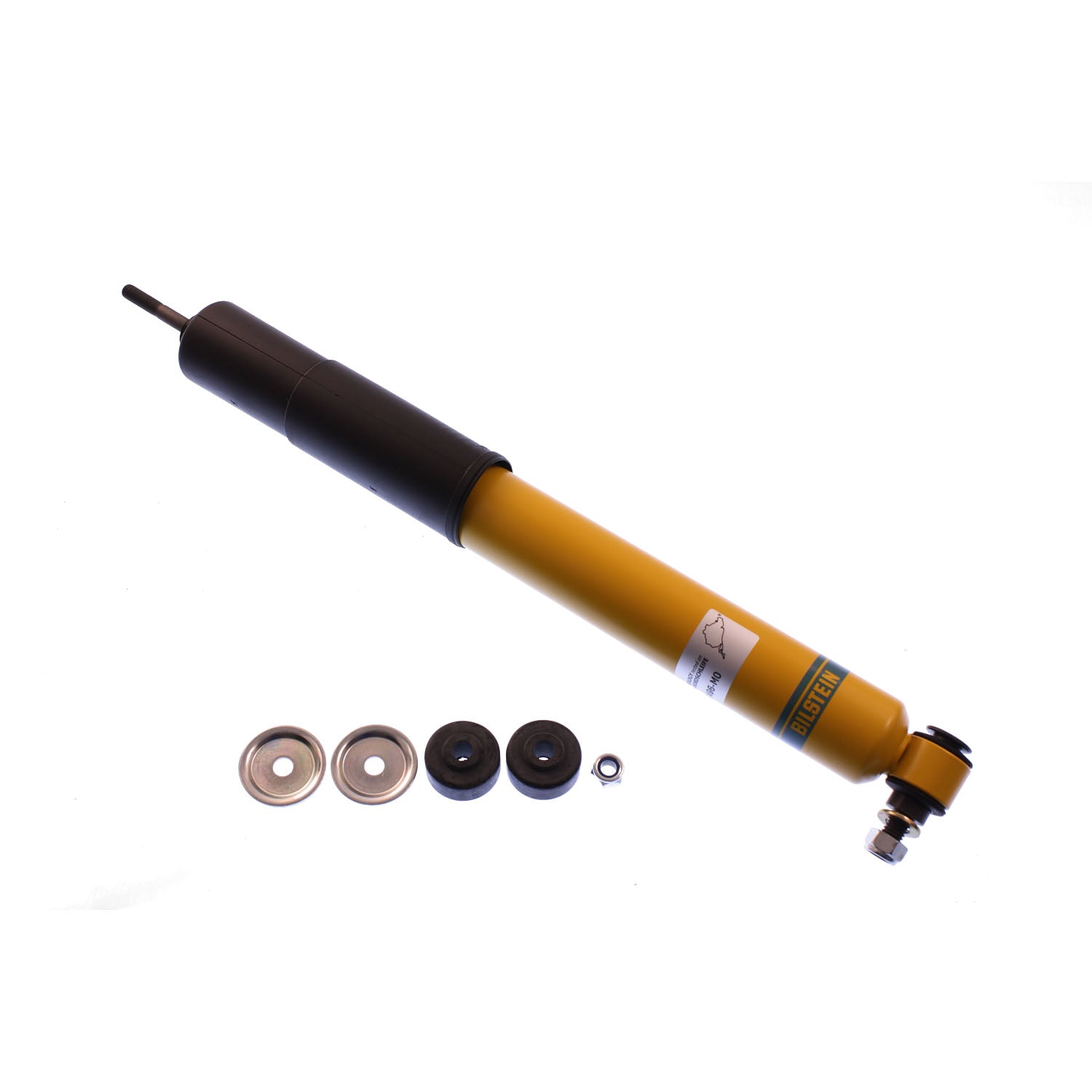

Bilstein AK Series Shock Absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series Shock Absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Standard Features

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
Part Number AK1196
Part Name Shock Absorber
UPC 790832511965
Adjustable Damping Non-Adjustable
Body Design Stock Mount Smooth Body
Body Material Steel
Boot Included Blue Straight
Collapsed Length 12.36 in.
Collapsed Length 314mm
Compression @ 0.26m/s 580
Extended Length 19.8 in.
Extended Length 503mm
Finish Yellow Paint
Internal Design Monotube
Lower Mount Type Cantilever
Piston Diameter 46mm
Piston Type Digressive
Vehicle Placement Rear
Rebound @ 0.26m/s 1380
Segment Motorsports
Series AK Series
Shaft Diameter 11mm
Spring Seat Included No
Stroke/Travel Length 7.44 in.
Stroke/Travel Length 189mm
Upper Mount Type Stem
Valving Identifier 310/130
