Product Details

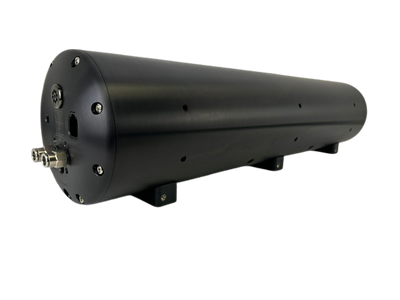

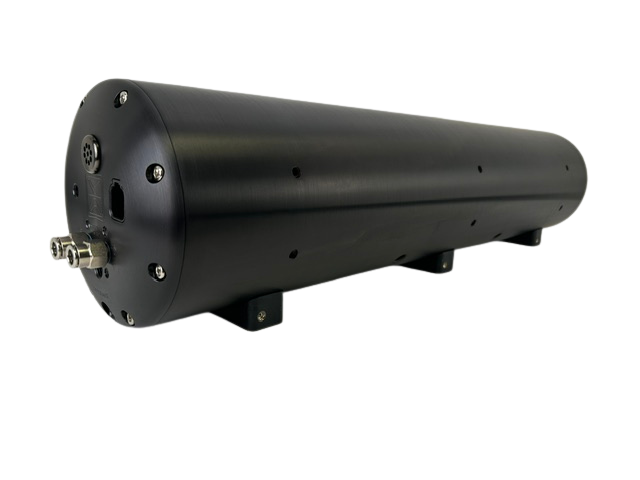

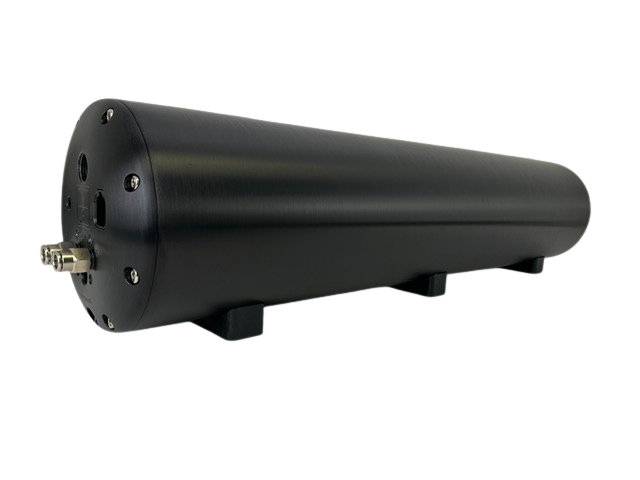

The AccuAir ENDO-VT Air Tank in Black Anodized with 3/8-inch NPT valve ports is the valve-integrated air suspension tank for stealth builds and matching black-cased ECU installs. The 3/8-inch NPT ports give hard-line builders a threaded alternative to the traditional DOT push-to-connect line, while the black anodized aluminum finish hides trunk grime and pairs cleanly with AccuAir's black-cased ECUs. Four solenoids and a pressure sensor live inside the end cap, so there is no external valve block to plumb, and AccuAir's next-generation VFC (variable flow control) technology carries over on both inflation and deflation.
Specifications
| Part Name | AccuAir ENDO-VT Air Tank |
| Vehicle | Universal |
| Capacity | 3 Gallon or 5 Gallon |
| Finish | Black Anodized Aluminum |

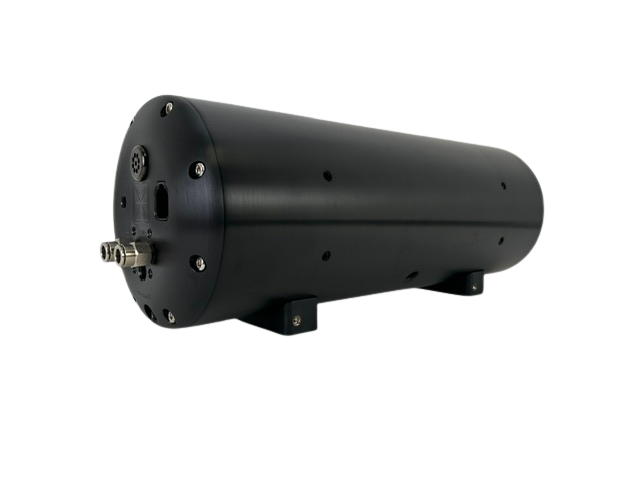

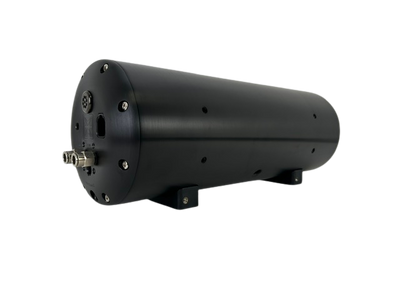

| Valve Ports | 3/8" NPT (Integrated) |

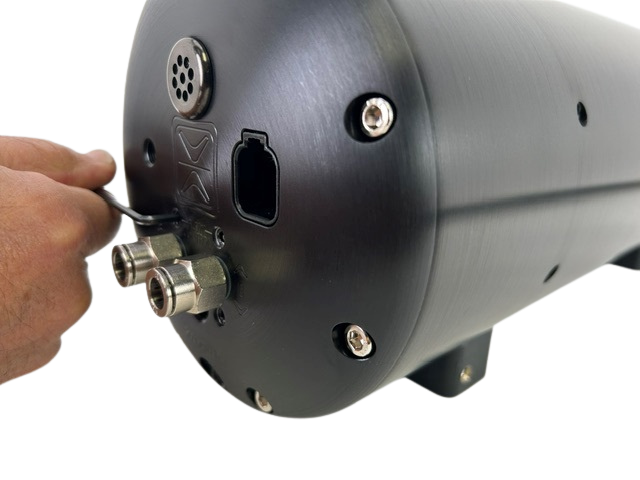

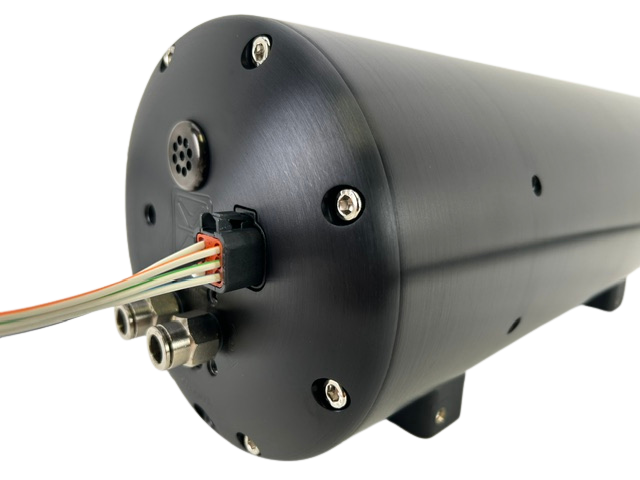

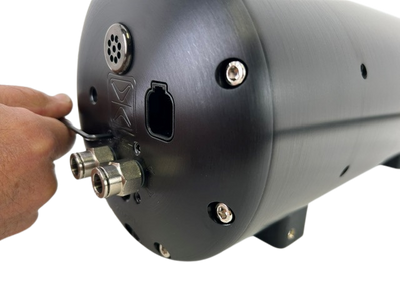

| Valve Solenoids | 4 (Integrated Into End Cap) |
| Flow Control | VFC Variable Flow Control (Inflate + Deflate) |
| Pressure Sensor | Integrated |
| Construction | Bolted, Weld-Free, Precision-Machined Aluminum |
| 3 Gallon Dimensions | 18.312" L x 6.625" D |
| 5 Gallon Dimensions | 29.312" L x 6.625" D |
About ENDO Tanks
AccuAir's ENDO-Tank™ product line represents the largest leap forward in air tank technology in a century. Every tank is built modularly from precision-machined aluminum components with a bolted, weld-free construction, resulting in a leak-free finished part. Ports are machined directly into the solid aluminum body and sit flush with the outside of the tank, and the modular end caps can be removed to enable feature combinations that were never possible before.
What Size Tank Do I Need For Air Suspension?
One of the most common questions we get is "what size tank do I need for my air suspension kit?" Most air suspension systems use either a 3 gallon or 5 gallon tank. The right choice depends on how often you plan on airing out and the size and quantity of compressors feeding the tank. If you air up and down often, a 5 gallon tank stores more air for quicker cycles. Our ENDO tanks are offered in 3 gallon and 5 gallon options.
