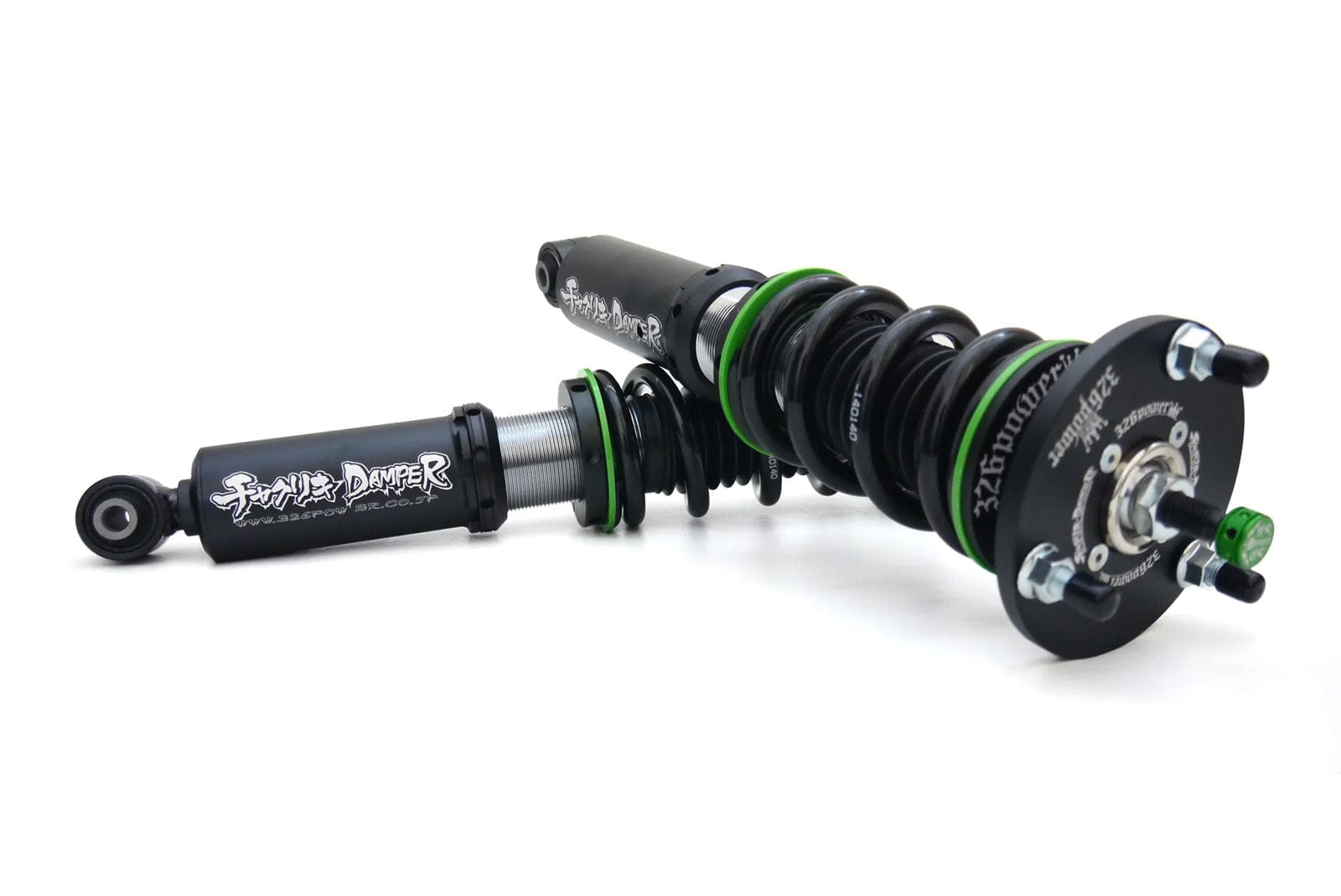

326POWER Coilovers for the 2012-2016 Scion FR-S (ZN6) deliver the aggressive stance and proven performance of Japanese-engineered suspension at an accessible price point. Designed by D1GP driver and 326POWER CEO Mitsuru Haruguchi, these monotube coilovers feature 26-step damping adjustment and independent ride height control for precise suspension tuning on your Scion FR-S.
Why Choose 326POWER?
- Extreme Drop Capability: Independent ride height and preload adjustment maintains full damper travel, even at the lowest settings
- 26-Step Damping Control: Precise click adjusters let you fine-tune rebound and compression for street or track driving
- Monotube Damper Design: Pre-valved for optimal performance with consistent damping response
- Built for Durability: 20mm-thick damper shafts, rubber dust boots, and hexagon-style locking collars with pinch-bolt system
- Japanese Quality: Engineered and built to order in Japan by 326POWER
Standard Specification
Every 326POWER coilover is a Chakuriki damper, assembled to order in Japan. This listing is the standard specification for the 2012-2016 Scion FR-S (ZN6), with spring rates set for the vehicle and component colors assigned at random. The damper, valving, and construction are identical to any other Chakuriki kit. The specification is simply chosen for you rather than by you.
Note: 326POWER coilovers are built to order in Japan. To choose your own spring rates, colors, and upgrade options, see the 326POWER LF Spec coilovers for this vehicle.
How to Build Your Coilovers
STEP 1: Springs
By default, Chakuriki coilovers are fitted with 326POWER's Charabane springs. Upgrade to Majibane springs, manufactured by Swift, for a more progressive spring setup.
STEP 2: Spring Color
Charabane springs come in Pink, Green, Gunmetal, or Yellow. Majibane springs come in Green, Pink, or Gold.
STEP 3: Kit Colors
Choose a color for each aluminum part: damping adjuster, upper mount, upper sheet, spring lock sheet, bracket lock sheet, and bracket. All seven colors are free, so pick one throughout or mix them.
STEP 4: Dust Boot Color
Black is included. Blue, Green, Pink, and Yellow are available as an upgrade.
STEP 5: Helper Springs
Helper springs keep the main spring supported at full extension when running a lot of droop. Choose Charabane or Swift Majibane, front, rear, or both ends.
STEP 6: Helper Spring Colors
If you added helper springs, choose the spring color and the collar color.
STEP 7: 360 Bearing
The 360 Bearing sits between the spring and the locking collar so the spring rotates freely and binds less when steering. Available upper, lower, or both, at either end.
STEP 8: Super Thrust Sheets
Thrust sheets reduce spring friction and noise when turning, which matters most with stiffer rates. Colors are assigned at random by 326POWER Japan.
STEP 9: Hex Lock Seat
An upgraded lock seat in Standard or High Spec.
Need a spring rate combination that is not listed? Ask in the order notes and 326POWER will build it.
Specifications
| Part Number | 326-CHAK-ZN6-8-6 |
| Part Name | 326POWER Coilovers |
| Vehicle | 2012-2016 Scion FR-S |
| Chassis Code | ZN6 |
| Ride-Height Adjustable | Yes |
| Damping Type | 1-Way (Rebound & Compression) |
| Spring Rates - Front | 8K |
| Spring Rates - Rear | 6K |
| Camber Plates - Front | Included |
| Camber Plates - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Country of Origin | Japan |
Vehicle Fitment
- 2012 Scion FR-S (ZN6)
- 2013 Scion FR-S (ZN6)
- 2014 Scion FR-S (ZN6)
- 2015 Scion FR-S (ZN6)
- 2016 Scion FR-S (ZN6)
