Product Details

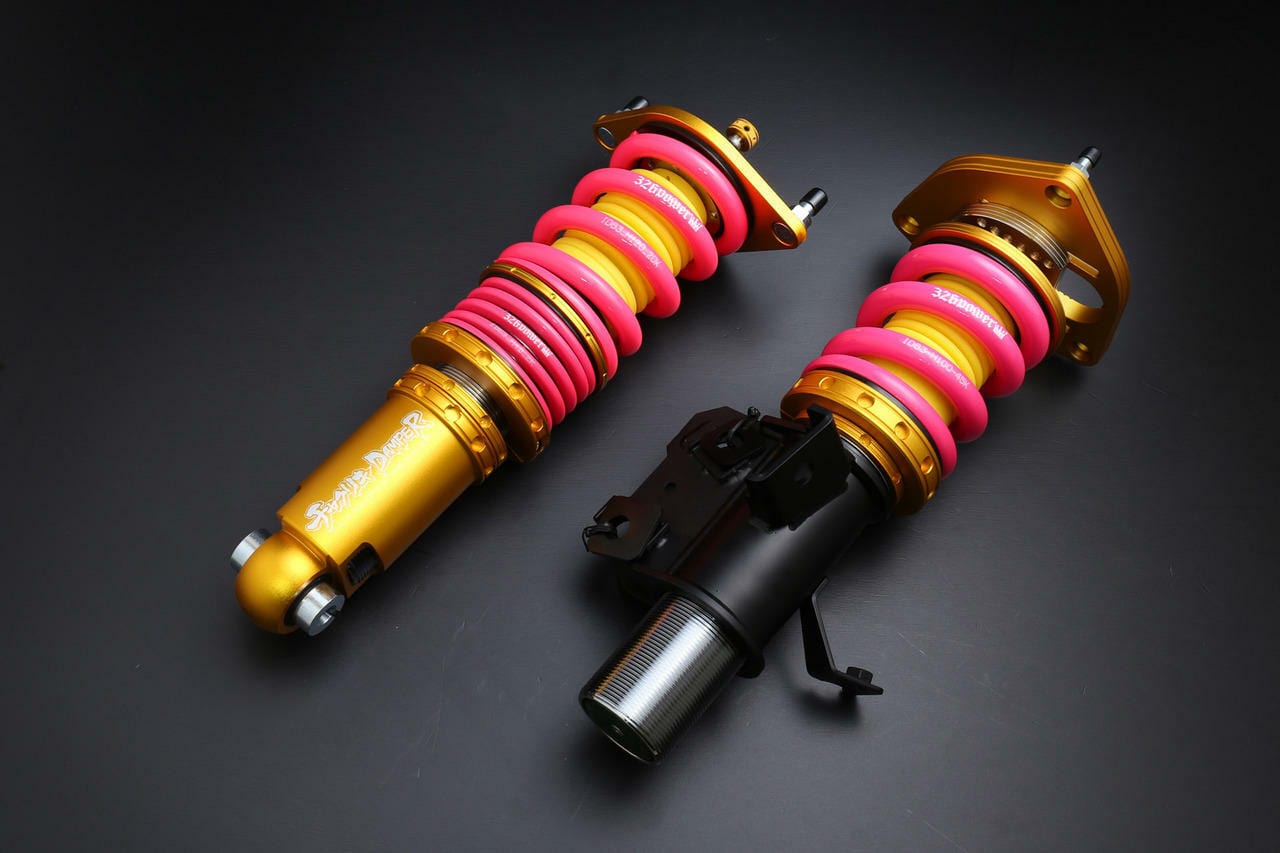

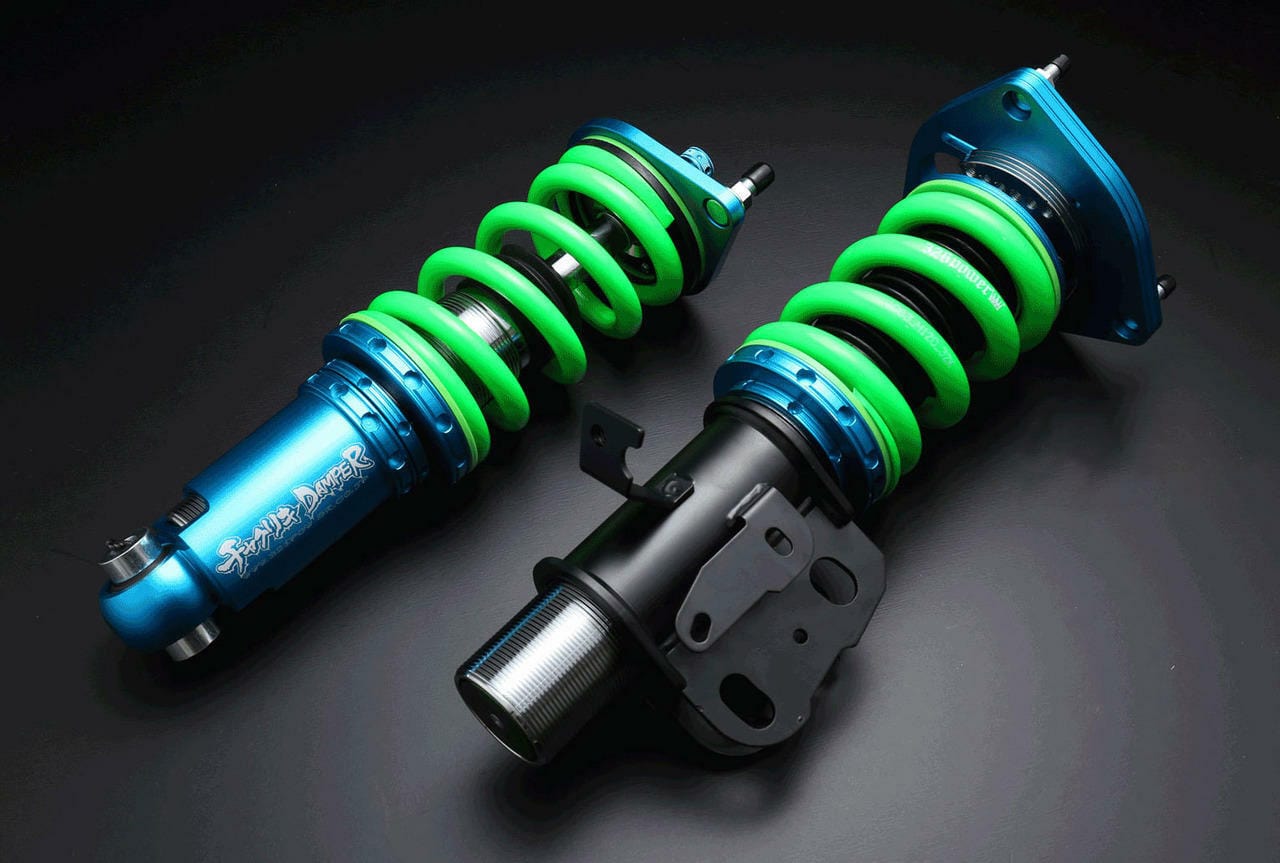

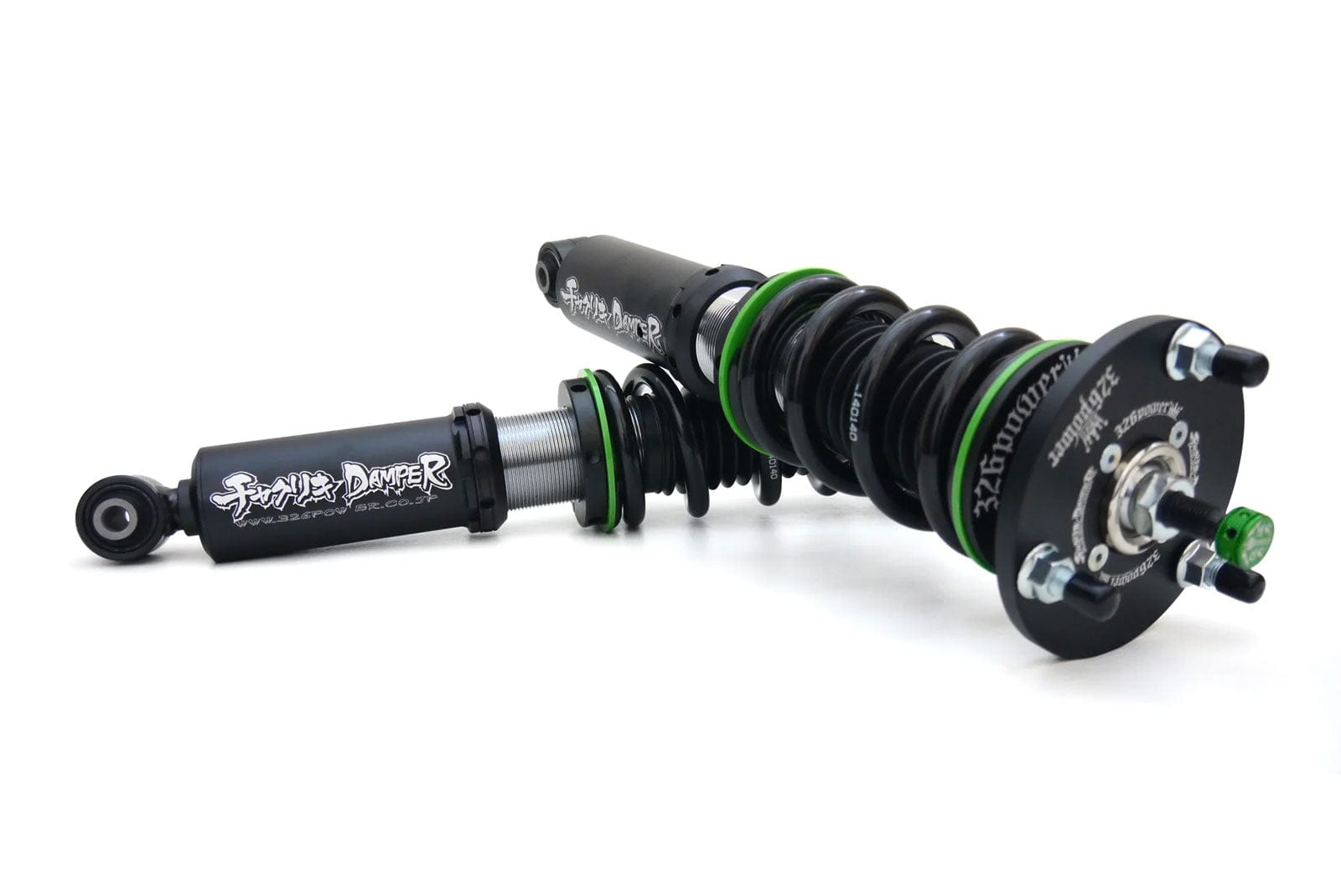

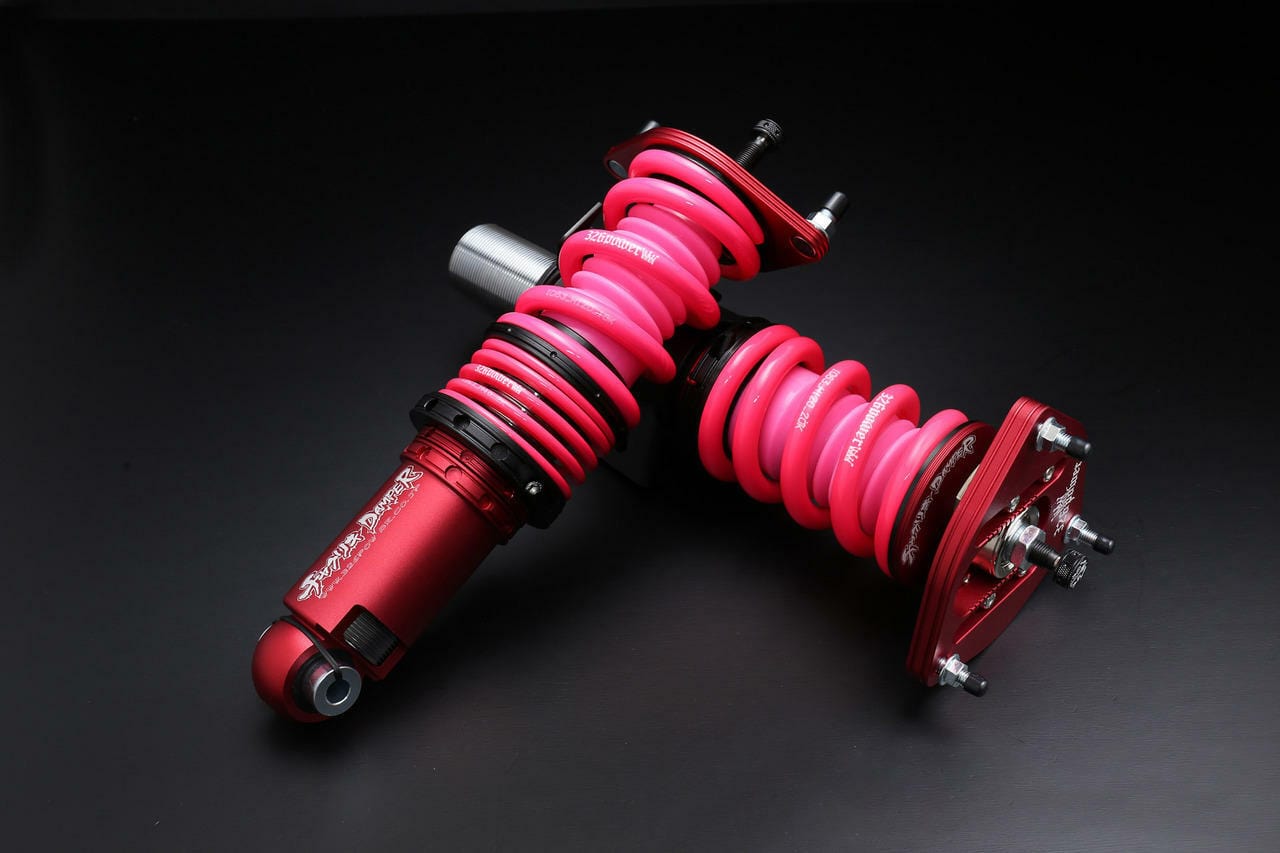

326POWER Chakuriki Coilovers for the 2017-2020 Toyota 86 (ZN6) represent the ultimate in customizable Japanese suspension. Designed by D1GP driver and 326POWER CEO Mitsuru Haruguchi, every Chakuriki kit is built to your exact specifications — choose your colors, spring rates, and upgrade options for a coilover setup engineered specifically for your Toyota 86.
Why Choose Chakuriki?
- Fully Customizable — Choose your own colors for adjusters, top mounts, springs, brackets, and dust boots
- Custom Spring Rates — Select from 4K to 100K (Kg/mm) with dampers valved to match your chosen rates
- 26-Step Damping Control — Precise click adjusters for fine-tuning rebound and compression
- Extreme Drop Capability — Independent ride height and preload adjustment maintains full damper travel at the lowest settings
- Built to Order in Japan — Each kit is assembled to your specifications by 326POWER
How to Build Your Coilovers

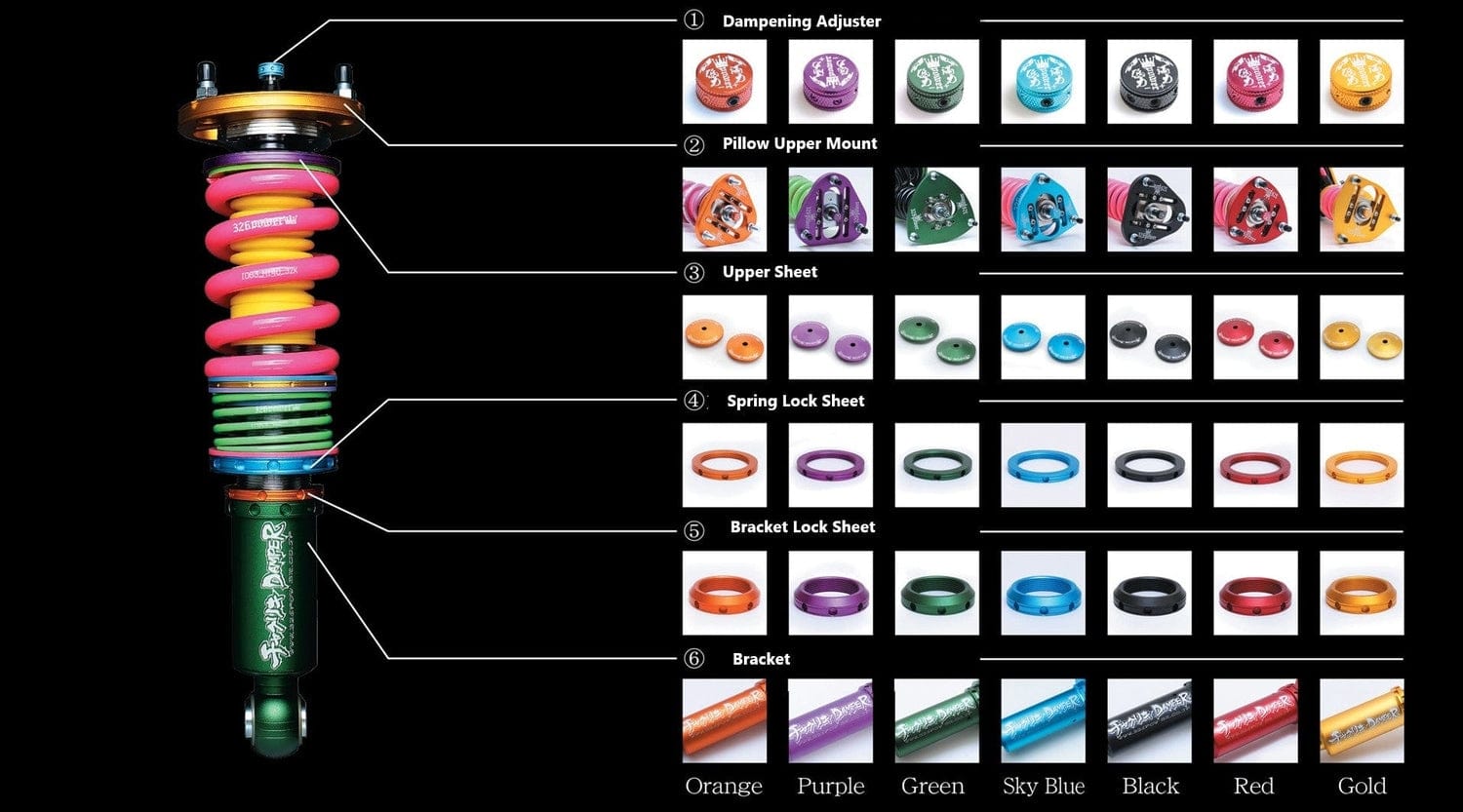

STEP 1, 2, & 3: Color Scheme - Blue, Black, Gold, Green, Orange, Purple, Red
Choose your desired colors for your dampening adjuster, pillow upper mount, and upper sheet color. Use the Additional Notes option when ordering to mix and match colors.
STEP 4: Majibane Spring Upgrade
By default, Chakuriki coilovers are fitted with 326POWER's Charabane springs. Upgrade to Majibane springs (manufactured by Swift) for a more progressive spring setup.
STEP 5: Spring Color and Spring Lock Sheet Color
Choose your desired spring color and spring lock sheet color.
STEP 6: Dust Boot Color – Black, Blue, Green, Pink, Yellow
Choose the desired color for the damper dust boots. The default color is black.
STEP 7: Bracket Lock Sheet Color and Bracket Color
Choose your desired bracket lock sheet color and bracket color.
STEP 8: Spring Super Thrust Sheets
Thrust sheets reduce spring friction and noise when turning, particularly with stiffer spring rates. Colors are assigned at random by 326POWER Japan.
STEP 9: Helper Spring Upgrade
If running a large amount of droop, helper springs keep the main spring supported at full extension. Choose from standard 326POWER Charabane helper springs or upgrade to Swift Majibane helper springs.
STEP 10: 360 Bearing Upgrade
On MacPherson strut applications, the 360 Bearing sits between the spring and lower locking collar, allowing the spring to rotate freely to reduce binding when steering. Available for top, bottom, or both positions.
STEP 11: Sliding Upper Mount
Adds extra clearance between front knuckle arms and coilover body on double-wishbone style suspension.
STEP 12: Spring Rates – 4K to 100K (Kg/mm)
Choose your desired spring rates. Dampers will be valved to match your selected rates.
Note: All 326POWER Chakuriki coilovers are built to order. The coilovers pictured may feature upgrade parts that are not included as standard.
Specifications
| Part Number | 326-CHAK-ZC6 |
| Part Name | 326POWER Chakuriki Coilovers |
| Vehicle | 2017-2020 Toyota 86 |
| Chassis Code | ZN6 |
| Ride-Height Adjustable | Yes |
| Damping Type | 1-Way (Rebound & Compression) |
| Camber Plates - Front | Included |
| Camber Plates - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Country of Origin | Japan |
Vehicle Fitment
- 2017 Toyota 86 (ZN6)
- 2018 Toyota 86 (ZN6)
- 2019 Toyota 86 (ZN6)
- 2020 Toyota 86 (ZN6)
